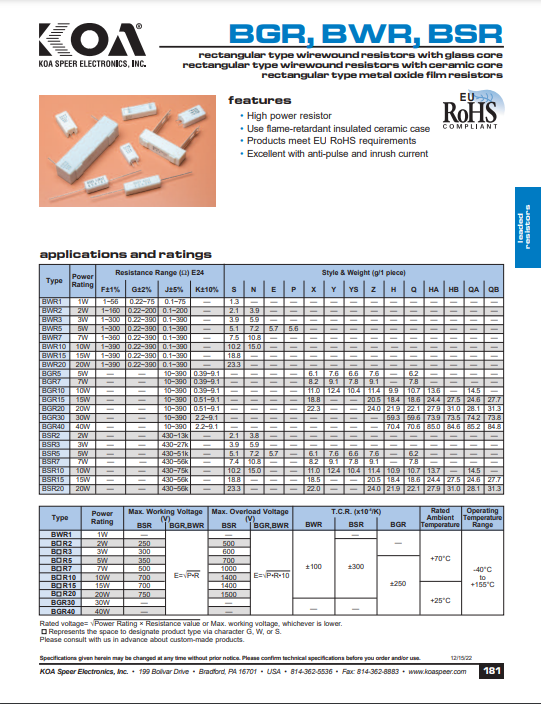

BGR BWR BSR-15

Features

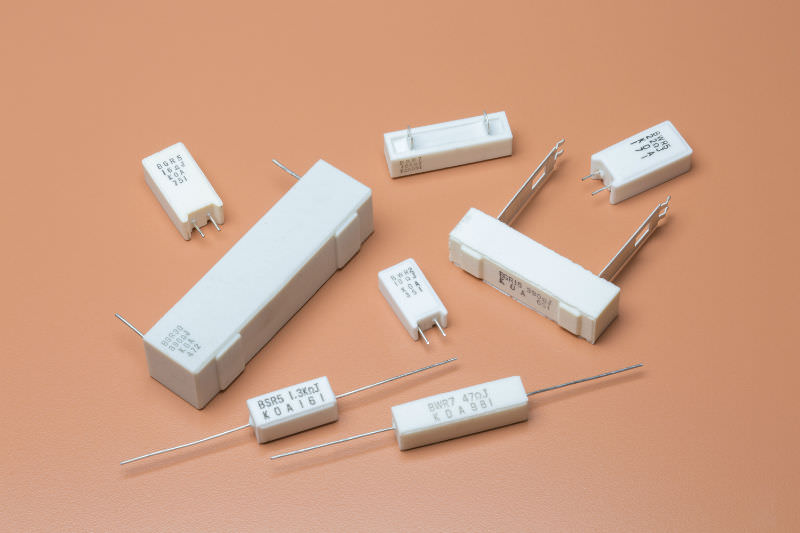

  • High Power Resistor
  • Use flame-retardant insulated ceramic case
  • Products with lead-free terminations meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in electrode, resistor element and glass.
  • Excellent with anti-pulse and inrush current


Applications and Ratings

Applications and Ratings


Ordering Information

Ordering Information


Dimensions and Construction

Dimensions and Construction


Dimensions and Construction

Dimensions and Construction


Dimensions and Construction

Dimensions and Construction


Dimensions and Construction

Dimensions and Construction

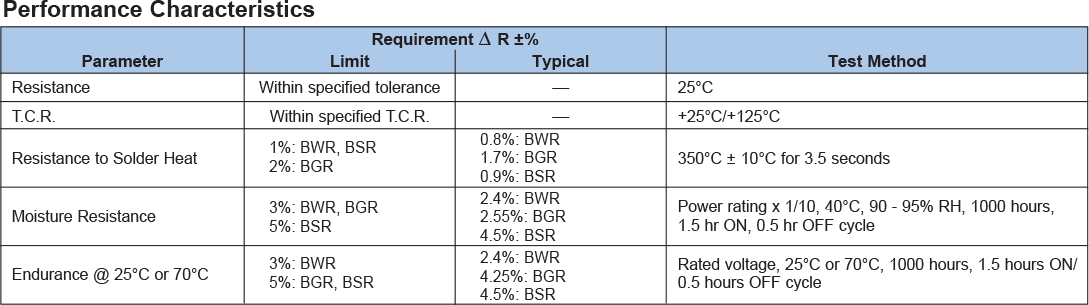

Environmental Applications

Environmental Applications
Last Updated: 6/26/2020
