AC-DC Switching Power Supply

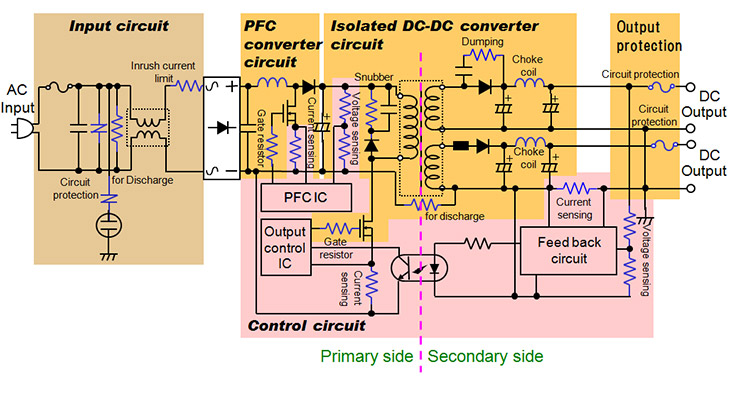

Input Circuit PFC Converter Circuit / DC-DC Converter Circuit / Output Protection PFC Converter Circuit / DC-DC Converter Circuit / Output Protection data-hash= Control Circuit

A Input Circuit

Surface Mounting Type Leaded Type
General Purpose Resistors RK73G, RK73H, RK73B CF
High Power Rating Resistors SG73P, WK73R, SLR MOS
Anti-Sulfur Resistors RS73-RT, RK73-RT, SG73-RT, SG73S-RT, SG73P-RT, HV73-RT, WK73-RT
For Discharge / High Voltage Resistant Resistors HV73 RCR, RK
Inrush Current Limit / Anti-Surge Resistors BGR, BWR, BSR, BPR, CW

B PFC Converter Circuit / DC-DC Converter Circuit / Output Protection

Surface Mounting Type Leaded Type
General Purpose Resistors RK73G, RK73H, RK73B CF
High Power Rating Resistors SG73P, WK73R, SLR MOS
Anti-Sulfur Resistors RS73-RT, RK73-RT, SG73-RT, SG73S-RT, SG73P-RT, HV73-RT, WK73-RT
For Discharge / High Voltage Resistant Resistors RCR, RK
Gate resistor; Snubber; Dumping / Anti-Surge Resistors SG73S, SG73P, SG73, SG73G, WG73 SPR(X), MOS, RCR, CW
Circuit Protection / Fuses TF16AT, TF16SN

C Control Circuit

Surface Mounting Type Leaded Type
General Purpose Resistors RK73G, RK73H, RK73B CF
High Power Rating Resistors SG73P, WK73R, SLR
Anti-Sulfur Resistors RS73-RT, SR73-RT, RK73-RT, SG73-RT, SG73S-RT, SG73P-RT, HV73-RT, WK73-RT
Current Sensing / Low Resistance Resistors SR73, UR73, UR73V, WK73S, WU73, TLRH, TLR, SL, SLN, SLW1, SLN3, SLN5 BPR, MOS(X)
Voltage Sensing / High Precision Resistors RN73H, RN73R, RS73 MF
