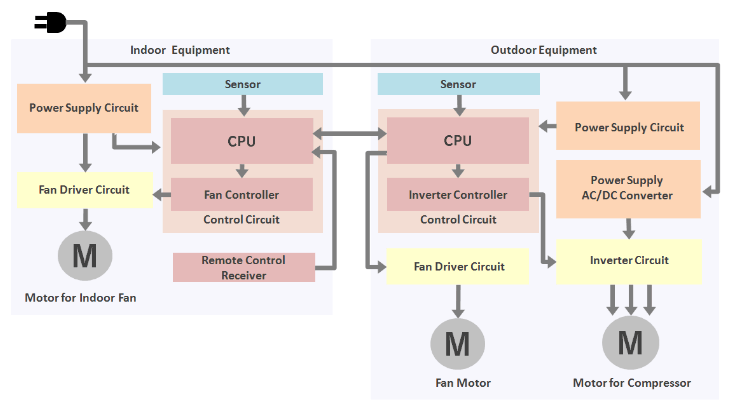

Control Circuit Control Circuit Invertor / Fan Driver Circuit Invertor / Fan Driver Circuit Power Supply Circuit Power Supply Circuit

A Power Supply Circuit

Surface Mounting Type Leaded Type
Sulfur Resistant / Resistors RS73-RTRK73-RTSG73-RTSG73S-RTSG73P-RTHV73-RTWK73-RTSR73-RT
Current Sensing / Resistors SR73UR73WK73SSL MOS(X)SPR(X)BPR
Surge Resistant / Resistors SG73SG73SSG73PSG73GWG73
High Voltage, Discharge / Resistors HV73 RCR
High Power Rating / Resistors WK73RSLSLR MOS(X)SPR(X)CWBGRBSR
High Precision / Resistors RN73HRN73RRS73
General Purpose / Resistors RK73GRK73BRK73H
Inrush Current Resistant / Resistors CW
Circuit Protection / Fusing Resistors RF73 RF
Circuit Protection / Fuses CCF1NCCF1F
Circuit Protection / Varistors NV73
Temperature Compensation / Linear Resistors LT73
Large Current Jumper / Jumper TLRZ

B Invertor / Fan Driver Circuit

Surface Mounting Type Leaded Type
Sulfur Resistant / Resistors RS73-RTRK73-RTSG73-RTSG73S-RTSG73P-RTHV73-RTWK73-RT
Current Sensing / Resistors TLR3APTLR3APSSLN5
Surge Resistant / Resistors SG73SG73SSG73PSG73GWG73
High Voltage / Resistors HV73 RCR
High Power Rating / Resistors WK73RSLSLR
High Precision / Resistors RN73HRN73RRS73
General Purpose / Resistors RK73GRK73BRK73H
Circuit Protection / Varistors NV73
Temperature Compensation / Linear Resistors LT73
Large Current Jumper / Jumper TLRZ

C Control Circuit

Surface Mounting Type Leaded Type
Sulfur Resistant / Resistors RS73-RTRK73-RTSG73-RTSG73S-RTSG73P-RTWK73-RT
Current Sensing / Resistors SR73UR73WK73STLRSL
Surge Resistant / Resistors SG73SG73SSG73PSG73GWG73
General Purpose / Resistors RK73GRK73BRK73H
Circuit Protection / Fuses TF16SNTF16AT
Circuit Protection / Varistors NV73
Temperature Compensation / Linear Resistors LT73
Check Terminal / Checker Chips RCTRCU
