KOA Speer...
A Leader in Automotive Electronics
Although most engineers know KOA as the world leader in thick film resistors, many are not aware of the extent of our broad line of passive components. In addition to our standard products, we’ve specifically developed a wide range of high-reliability and anti-sulfuration components for the demanding applications found within the automotive industry.
KOA Speer's family of automotive components includes thin and thick film resistors, specialty resistors and arrays, power shunt resistors, current sense resistors, circuit protection and thermal sensors, and inductors. And we’re the industry’s most recognized and award-winning supplier for achieving the highest product quality, on-time delivery and responsive customer service. You can count on KOA Speer as your Automotive Electronics partner.
Automotive Solutions
To view the KOA Speer components used for a particular area, please click the colored boxes below or select the system from the list on the left.
Choose application from the list

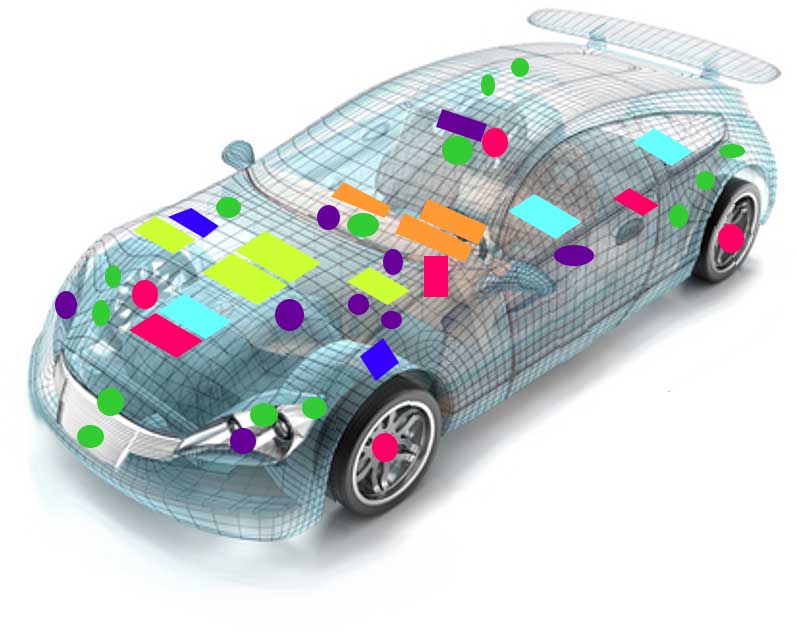

or Choose application from the image
KOA Speer's Family of Automotive Components
Related Documents

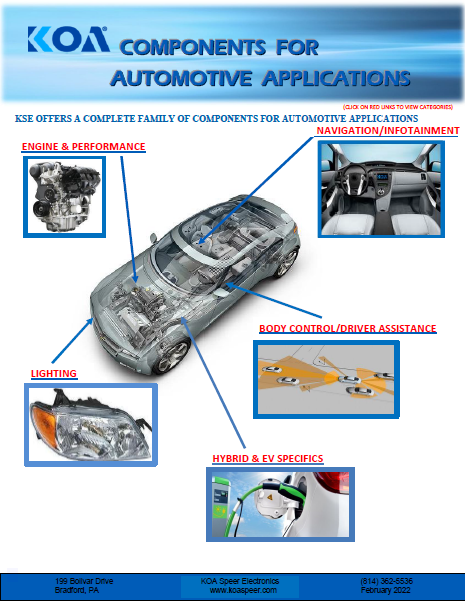

Automotive Components

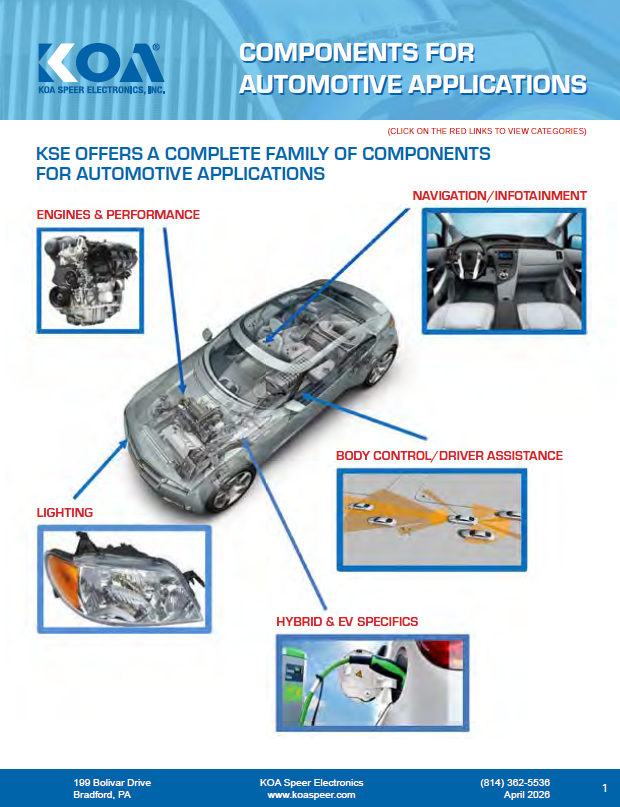

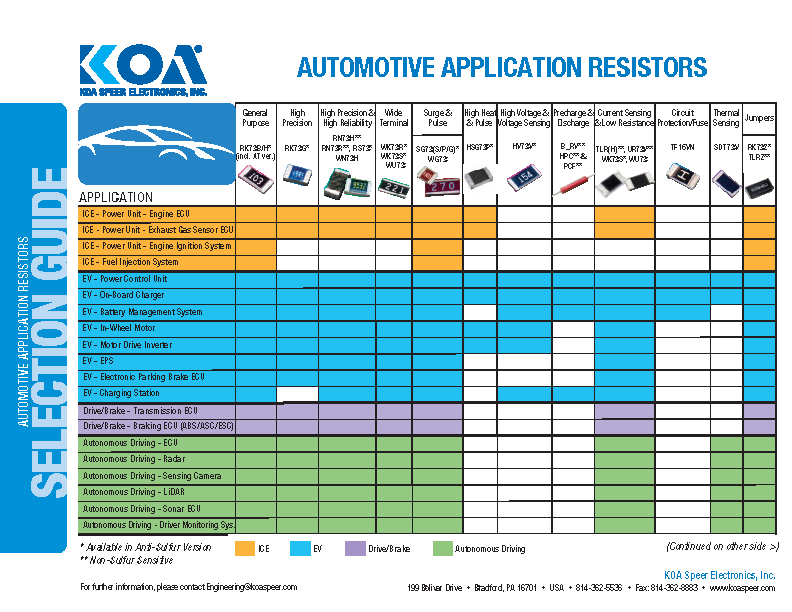

Automotive Resistors Selection Guide
Engine ECU
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
Engine ECU
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
Exhaust Gas Sensor ECU
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
Exhaust Gas Sensor ECU
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
Engine (Ignition System)
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
Engine (Ignition System)
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded

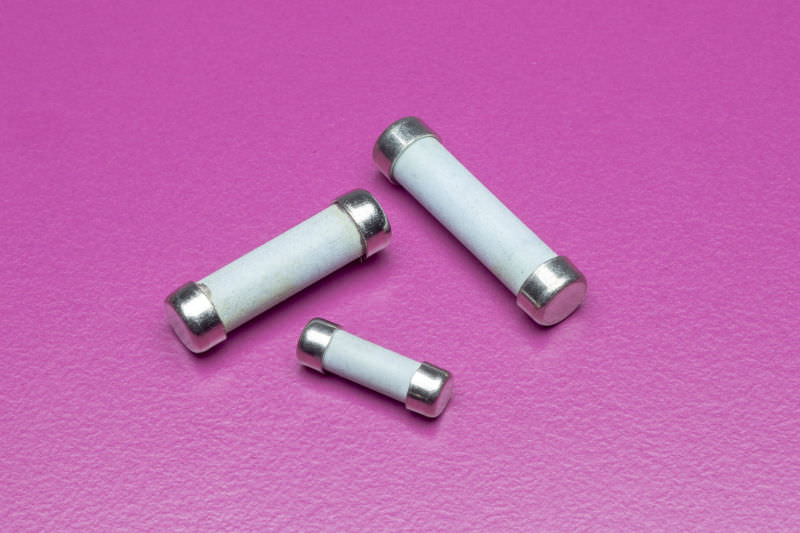

CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
Fuel Injection System
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
Fuel Injection System
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
End of Life and NRND Products
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Power Control Unit
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
Power Control Unit
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
HV73V 1J AT, 2A AT, 2B AT High Voltage for Automotive Resistors
- AEC-Q200 Tested
- Maximum working voltage as high as 350V (0603), 800V (1206)
- Superior to RK73 in maximum working voltage
- Working voltage: 350V ~ 800V
- Resistance range: 10K ~ 51MΩ
- Sizes: 0603 ~ 1206
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
MWS Mold Wirewound Resistors NEW
- Ultra precision TCR up to ±2.5ppm/°C
- Low tolerance: ±0.01%, ~ ±0.5%
- Wide resistance range: 10 ~ 1MΩ
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
RCR Anti-Surge Resistors
- Excellent anti-surge characteristics
- Stable characteristics of moisture resistance up to 100MΩ resistance range
- RCR50+, RCR50EN (1M ~ 12MΩ ), RCR60 (1M ~ 12MΩ ) are conductivepath and discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ ), RCR60 (100k ~ 56MΩ ) are approved by EN6268-1 G.10 safety
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
End of Life and NRND Products
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- High Voltage Flat Chip Resistor for Automotive
- AEC-Q200 Qualified
- Passes ASTM-809 anti-sulfuration testing
Power Shunts
PSL2 Large Current Sense Resistors, Ultra Low Resistance, 2-Terminal
- Resistance range: 0.2, 0.3, 0.5mΩ
- Power rating: 8W, 9W
- TCR: ±115, ±175, 250 ~ ±100ppm/°C
- Tolerance: ±1%
PSF4 Large Current Sense Resistors, Ultra Low Resistance, 4-Terminal, Low TCR
- Resistance range: 0.5, 1mΩ
- Power rating: 3W, 5W
- TCR: ±50ppm/°C
- Tolerance: ±1%
On-Board Charger
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
On-Board Charger
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
HV73V 1J AT, 2A AT, 2B AT High Voltage for Automotive Resistors
- AEC-Q200 Tested
- Maximum working voltage as high as 350V (0603), 800V (1206)
- Superior to RK73 in maximum working voltage
- Working voltage: 350V ~ 800V
- Resistance range: 10K ~ 51MΩ
- Sizes: 0603 ~ 1206
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
MWS Mold Wirewound Resistors NEW
- Ultra precision TCR up to ±2.5ppm/°C
- Low tolerance: ±0.01%, ~ ±0.5%
- Wide resistance range: 10 ~ 1MΩ
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
RCR Anti-Surge Resistors
- Excellent anti-surge characteristics
- Stable characteristics of moisture resistance up to 100MΩ resistance range
- RCR50+, RCR50EN (1M ~ 12MΩ ), RCR60 (1M ~ 12MΩ ) are conductivepath and discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ ), RCR60 (100k ~ 56MΩ ) are approved by EN6268-1 G.10 safety
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
End of Life and NRND Products
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- High Voltage Flat Chip Resistor for Automotive
- AEC-Q200 Qualified
- Passes ASTM-809 anti-sulfuration testing
Power Shunts
PSL2 Large Current Sense Resistors, Ultra Low Resistance, 2-Terminal
- Resistance range: 0.2, 0.3, 0.5mΩ
- Power rating: 8W, 9W
- TCR: ±115, ±175, 250 ~ ±100ppm/°C
- Tolerance: ±1%
PSF4 Large Current Sense Resistors, Ultra Low Resistance, 4-Terminal, Low TCR
- Resistance range: 0.5, 1mΩ
- Power rating: 3W, 5W
- TCR: ±50ppm/°C
- Tolerance: ±1%
Battery Management System
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
Battery Management System
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
HV73V 1J AT, 2A AT, 2B AT High Voltage for Automotive Resistors
- AEC-Q200 Tested
- Maximum working voltage as high as 350V (0603), 800V (1206)
- Superior to RK73 in maximum working voltage
- Working voltage: 350V ~ 800V
- Resistance range: 10K ~ 51MΩ
- Sizes: 0603 ~ 1206
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
MWS Mold Wirewound Resistors NEW
- Ultra precision TCR up to ±2.5ppm/°C
- Low tolerance: ±0.01%, ~ ±0.5%
- Wide resistance range: 10 ~ 1MΩ
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
RCR Anti-Surge Resistors
- Excellent anti-surge characteristics
- Stable characteristics of moisture resistance up to 100MΩ resistance range
- RCR50+, RCR50EN (1M ~ 12MΩ ), RCR60 (1M ~ 12MΩ ) are conductivepath and discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ ), RCR60 (100k ~ 56MΩ ) are approved by EN6268-1 G.10 safety
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
End of Life and NRND Products
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- High Voltage Flat Chip Resistor for Automotive
- AEC-Q200 Qualified
- Passes ASTM-809 anti-sulfuration testing
Power Shunts
PSL2 Large Current Sense Resistors, Ultra Low Resistance, 2-Terminal
- Resistance range: 0.2, 0.3, 0.5mΩ
- Power rating: 8W, 9W
- TCR: ±115, ±175, 250 ~ ±100ppm/°C
- Tolerance: ±1%
PSF4 Large Current Sense Resistors, Ultra Low Resistance, 4-Terminal, Low TCR
- Resistance range: 0.5, 1mΩ
- Power rating: 3W, 5W
- TCR: ±50ppm/°C
- Tolerance: ±1%
HS Large Current Sense Resistors, Ultra Low Resistance
- Resistance Range: 0.05, 0.1, 0.2mΩ
- Power Rating: 18W, 36W, 50W
- Size: 4015 (mm)
- Tolerance: ±5%
- TCR: 50±25ppm/°C
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
In-Wheel Motor
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
In-Wheel Motor
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
HV73V 1J AT, 2A AT, 2B AT High Voltage for Automotive Resistors
- AEC-Q200 Tested
- Maximum working voltage as high as 350V (0603), 800V (1206)
- Superior to RK73 in maximum working voltage
- Working voltage: 350V ~ 800V
- Resistance range: 10K ~ 51MΩ
- Sizes: 0603 ~ 1206
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
MWS Mold Wirewound Resistors NEW
- Ultra precision TCR up to ±2.5ppm/°C
- Low tolerance: ±0.01%, ~ ±0.5%
- Wide resistance range: 10 ~ 1MΩ
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
RCR Anti-Surge Resistors
- Excellent anti-surge characteristics
- Stable characteristics of moisture resistance up to 100MΩ resistance range
- RCR50+, RCR50EN (1M ~ 12MΩ ), RCR60 (1M ~ 12MΩ ) are conductivepath and discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ ), RCR60 (100k ~ 56MΩ ) are approved by EN6268-1 G.10 safety
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
End of Life and NRND Products
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- High Voltage Flat Chip Resistor for Automotive
- AEC-Q200 Qualified
- Passes ASTM-809 anti-sulfuration testing
Power Shunts
PSL2 Large Current Sense Resistors, Ultra Low Resistance, 2-Terminal
- Resistance range: 0.2, 0.3, 0.5mΩ
- Power rating: 8W, 9W
- TCR: ±115, ±175, 250 ~ ±100ppm/°C
- Tolerance: ±1%
PSF4 Large Current Sense Resistors, Ultra Low Resistance, 4-Terminal, Low TCR
- Resistance range: 0.5, 1mΩ
- Power rating: 3W, 5W
- TCR: ±50ppm/°C
- Tolerance: ±1%
HS Large Current Sense Resistors, Ultra Low Resistance
- Resistance Range: 0.05, 0.1, 0.2mΩ
- Power Rating: 18W, 36W, 50W
- Size: 4015 (mm)
- Tolerance: ±5%
- TCR: 50±25ppm/°C
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Motor Drive Inverter
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
Motor Drive Inverter
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
HV73V 1J AT, 2A AT, 2B AT High Voltage for Automotive Resistors
- AEC-Q200 Tested
- Maximum working voltage as high as 350V (0603), 800V (1206)
- Superior to RK73 in maximum working voltage
- Working voltage: 350V ~ 800V
- Resistance range: 10K ~ 51MΩ
- Sizes: 0603 ~ 1206
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
MWS Mold Wirewound Resistors NEW
- Ultra precision TCR up to ±2.5ppm/°C
- Low tolerance: ±0.01%, ~ ±0.5%
- Wide resistance range: 10 ~ 1MΩ
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
RCR Anti-Surge Resistors
- Excellent anti-surge characteristics
- Stable characteristics of moisture resistance up to 100MΩ resistance range
- RCR50+, RCR50EN (1M ~ 12MΩ ), RCR60 (1M ~ 12MΩ ) are conductivepath and discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ ), RCR60 (100k ~ 56MΩ ) are approved by EN6268-1 G.10 safety
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
End of Life and NRND Products
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- High Voltage Flat Chip Resistor for Automotive
- AEC-Q200 Qualified
- Passes ASTM-809 anti-sulfuration testing
Power Shunts
PSL2 Large Current Sense Resistors, Ultra Low Resistance, 2-Terminal
- Resistance range: 0.2, 0.3, 0.5mΩ
- Power rating: 8W, 9W
- TCR: ±115, ±175, 250 ~ ±100ppm/°C
- Tolerance: ±1%
PSF4 Large Current Sense Resistors, Ultra Low Resistance, 4-Terminal, Low TCR
- Resistance range: 0.5, 1mΩ
- Power rating: 3W, 5W
- TCR: ±50ppm/°C
- Tolerance: ±1%
HS Large Current Sense Resistors, Ultra Low Resistance
- Resistance Range: 0.05, 0.1, 0.2mΩ
- Power Rating: 18W, 36W, 50W
- Size: 4015 (mm)
- Tolerance: ±5%
- TCR: 50±25ppm/°C
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
EPS
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
EPS
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
HV73V 1J AT, 2A AT, 2B AT High Voltage for Automotive Resistors
- AEC-Q200 Tested
- Maximum working voltage as high as 350V (0603), 800V (1206)
- Superior to RK73 in maximum working voltage
- Working voltage: 350V ~ 800V
- Resistance range: 10K ~ 51MΩ
- Sizes: 0603 ~ 1206
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
MWS Mold Wirewound Resistors NEW
- Ultra precision TCR up to ±2.5ppm/°C
- Low tolerance: ±0.01%, ~ ±0.5%
- Wide resistance range: 10 ~ 1MΩ
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
RCR Anti-Surge Resistors
- Excellent anti-surge characteristics
- Stable characteristics of moisture resistance up to 100MΩ resistance range
- RCR50+, RCR50EN (1M ~ 12MΩ ), RCR60 (1M ~ 12MΩ ) are conductivepath and discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ ), RCR60 (100k ~ 56MΩ ) are approved by EN6268-1 G.10 safety
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
End of Life and NRND Products
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- High Voltage Flat Chip Resistor for Automotive
- AEC-Q200 Qualified
- Passes ASTM-809 anti-sulfuration testing
Power Shunts
PSL2 Large Current Sense Resistors, Ultra Low Resistance, 2-Terminal
- Resistance range: 0.2, 0.3, 0.5mΩ
- Power rating: 8W, 9W
- TCR: ±115, ±175, 250 ~ ±100ppm/°C
- Tolerance: ±1%
PSF4 Large Current Sense Resistors, Ultra Low Resistance, 4-Terminal, Low TCR
- Resistance range: 0.5, 1mΩ
- Power rating: 3W, 5W
- TCR: ±50ppm/°C
- Tolerance: ±1%
HS Large Current Sense Resistors, Ultra Low Resistance
- Resistance Range: 0.05, 0.1, 0.2mΩ
- Power Rating: 18W, 36W, 50W
- Size: 4015 (mm)
- Tolerance: ±5%
- TCR: 50±25ppm/°C
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Electronic Parking Brake ECU
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
Electronic Parking Brake ECU
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
HV73V 1J AT, 2A AT, 2B AT High Voltage for Automotive Resistors
- AEC-Q200 Tested
- Maximum working voltage as high as 350V (0603), 800V (1206)
- Superior to RK73 in maximum working voltage
- Working voltage: 350V ~ 800V
- Resistance range: 10K ~ 51MΩ
- Sizes: 0603 ~ 1206
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
MWS Mold Wirewound Resistors NEW
- Ultra precision TCR up to ±2.5ppm/°C
- Low tolerance: ±0.01%, ~ ±0.5%
- Wide resistance range: 10 ~ 1MΩ
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
RCR Anti-Surge Resistors
- Excellent anti-surge characteristics
- Stable characteristics of moisture resistance up to 100MΩ resistance range
- RCR50+, RCR50EN (1M ~ 12MΩ ), RCR60 (1M ~ 12MΩ ) are conductivepath and discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ ), RCR60 (100k ~ 56MΩ ) are approved by EN6268-1 G.10 safety
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
End of Life and NRND Products
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- High Voltage Flat Chip Resistor for Automotive
- AEC-Q200 Qualified
- Passes ASTM-809 anti-sulfuration testing
Power Shunts
PSL2 Large Current Sense Resistors, Ultra Low Resistance, 2-Terminal
- Resistance range: 0.2, 0.3, 0.5mΩ
- Power rating: 8W, 9W
- TCR: ±115, ±175, 250 ~ ±100ppm/°C
- Tolerance: ±1%
PSF4 Large Current Sense Resistors, Ultra Low Resistance, 4-Terminal, Low TCR
- Resistance range: 0.5, 1mΩ
- Power rating: 3W, 5W
- TCR: ±50ppm/°C
- Tolerance: ±1%
HS Large Current Sense Resistors, Ultra Low Resistance
- Resistance Range: 0.05, 0.1, 0.2mΩ
- Power Rating: 18W, 36W, 50W
- Size: 4015 (mm)
- Tolerance: ±5%
- TCR: 50±25ppm/°C
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Transmission ECU
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
Transmission ECU
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
HV73V 1J AT, 2A AT, 2B AT High Voltage for Automotive Resistors
- AEC-Q200 Tested
- Maximum working voltage as high as 350V (0603), 800V (1206)
- Superior to RK73 in maximum working voltage
- Working voltage: 350V ~ 800V
- Resistance range: 10K ~ 51MΩ
- Sizes: 0603 ~ 1206
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
MWS Mold Wirewound Resistors NEW
- Ultra precision TCR up to ±2.5ppm/°C
- Low tolerance: ±0.01%, ~ ±0.5%
- Wide resistance range: 10 ~ 1MΩ
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
RCR Anti-Surge Resistors
- Excellent anti-surge characteristics
- Stable characteristics of moisture resistance up to 100MΩ resistance range
- RCR50+, RCR50EN (1M ~ 12MΩ ), RCR60 (1M ~ 12MΩ ) are conductivepath and discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ ), RCR60 (100k ~ 56MΩ ) are approved by EN6268-1 G.10 safety
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
End of Life and NRND Products
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- High Voltage Flat Chip Resistor for Automotive
- AEC-Q200 Qualified
- Passes ASTM-809 anti-sulfuration testing
Power Shunts
PSL2 Large Current Sense Resistors, Ultra Low Resistance, 2-Terminal
- Resistance range: 0.2, 0.3, 0.5mΩ
- Power rating: 8W, 9W
- TCR: ±115, ±175, 250 ~ ±100ppm/°C
- Tolerance: ±1%
PSF4 Large Current Sense Resistors, Ultra Low Resistance, 4-Terminal, Low TCR
- Resistance range: 0.5, 1mΩ
- Power rating: 3W, 5W
- TCR: ±50ppm/°C
- Tolerance: ±1%
HS Large Current Sense Resistors, Ultra Low Resistance
- Resistance Range: 0.05, 0.1, 0.2mΩ
- Power Rating: 18W, 36W, 50W
- Size: 4015 (mm)
- Tolerance: ±5%
- TCR: 50±25ppm/°C
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Braking ECU (ABS/ASC/ESC)
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
Braking ECU (ABS/ASC/ESC)
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
HV73V 1J AT, 2A AT, 2B AT High Voltage for Automotive Resistors
- AEC-Q200 Tested
- Maximum working voltage as high as 350V (0603), 800V (1206)
- Superior to RK73 in maximum working voltage
- Working voltage: 350V ~ 800V
- Resistance range: 10K ~ 51MΩ
- Sizes: 0603 ~ 1206
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
MWS Mold Wirewound Resistors NEW
- Ultra precision TCR up to ±2.5ppm/°C
- Low tolerance: ±0.01%, ~ ±0.5%
- Wide resistance range: 10 ~ 1MΩ
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
RCR Anti-Surge Resistors
- Excellent anti-surge characteristics
- Stable characteristics of moisture resistance up to 100MΩ resistance range
- RCR50+, RCR50EN (1M ~ 12MΩ ), RCR60 (1M ~ 12MΩ ) are conductivepath and discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ ), RCR60 (100k ~ 56MΩ ) are approved by EN6268-1 G.10 safety
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
End of Life and NRND Products
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- High Voltage Flat Chip Resistor for Automotive
- AEC-Q200 Qualified
- Passes ASTM-809 anti-sulfuration testing
Power Shunts
PSL2 Large Current Sense Resistors, Ultra Low Resistance, 2-Terminal
- Resistance range: 0.2, 0.3, 0.5mΩ
- Power rating: 8W, 9W
- TCR: ±115, ±175, 250 ~ ±100ppm/°C
- Tolerance: ±1%
PSF4 Large Current Sense Resistors, Ultra Low Resistance, 4-Terminal, Low TCR
- Resistance range: 0.5, 1mΩ
- Power rating: 3W, 5W
- TCR: ±50ppm/°C
- Tolerance: ±1%
HS Large Current Sense Resistors, Ultra Low Resistance
- Resistance Range: 0.05, 0.1, 0.2mΩ
- Power Rating: 18W, 36W, 50W
- Size: 4015 (mm)
- Tolerance: ±5%
- TCR: 50±25ppm/°C
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
ADAS-ECU
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
ADAS-ECU
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
HV73V 1J AT, 2A AT, 2B AT High Voltage for Automotive Resistors
- AEC-Q200 Tested
- Maximum working voltage as high as 350V (0603), 800V (1206)
- Superior to RK73 in maximum working voltage
- Working voltage: 350V ~ 800V
- Resistance range: 10K ~ 51MΩ
- Sizes: 0603 ~ 1206
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
MWS Mold Wirewound Resistors NEW
- Ultra precision TCR up to ±2.5ppm/°C
- Low tolerance: ±0.01%, ~ ±0.5%
- Wide resistance range: 10 ~ 1MΩ
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
RCR Anti-Surge Resistors
- Excellent anti-surge characteristics
- Stable characteristics of moisture resistance up to 100MΩ resistance range
- RCR50+, RCR50EN (1M ~ 12MΩ ), RCR60 (1M ~ 12MΩ ) are conductivepath and discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ ), RCR60 (100k ~ 56MΩ ) are approved by EN6268-1 G.10 safety
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
End of Life and NRND Products
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- High Voltage Flat Chip Resistor for Automotive
- AEC-Q200 Qualified
- Passes ASTM-809 anti-sulfuration testing
Power Shunts
PSL2 Large Current Sense Resistors, Ultra Low Resistance, 2-Terminal
- Resistance range: 0.2, 0.3, 0.5mΩ
- Power rating: 8W, 9W
- TCR: ±115, ±175, 250 ~ ±100ppm/°C
- Tolerance: ±1%
PSF4 Large Current Sense Resistors, Ultra Low Resistance, 4-Terminal, Low TCR
- Resistance range: 0.5, 1mΩ
- Power rating: 3W, 5W
- TCR: ±50ppm/°C
- Tolerance: ±1%
HS Large Current Sense Resistors, Ultra Low Resistance
- Resistance Range: 0.05, 0.1, 0.2mΩ
- Power Rating: 18W, 36W, 50W
- Size: 4015 (mm)
- Tolerance: ±5%
- TCR: 50±25ppm/°C
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Short-Range Radar
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Short-Range Radar
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
HV73V 1J AT, 2A AT, 2B AT High Voltage for Automotive Resistors
- AEC-Q200 Tested
- Maximum working voltage as high as 350V (0603), 800V (1206)
- Superior to RK73 in maximum working voltage
- Working voltage: 350V ~ 800V
- Resistance range: 10K ~ 51MΩ
- Sizes: 0603 ~ 1206
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
MWS Mold Wirewound Resistors NEW
- Ultra precision TCR up to ±2.5ppm/°C
- Low tolerance: ±0.01%, ~ ±0.5%
- Wide resistance range: 10 ~ 1MΩ
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
RCR Anti-Surge Resistors
- Excellent anti-surge characteristics
- Stable characteristics of moisture resistance up to 100MΩ resistance range
- RCR50+, RCR50EN (1M ~ 12MΩ ), RCR60 (1M ~ 12MΩ ) are conductivepath and discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ ), RCR60 (100k ~ 56MΩ ) are approved by EN6268-1 G.10 safety
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
End of Life and NRND Products
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- High Voltage Flat Chip Resistor for Automotive
- AEC-Q200 Qualified
- Passes ASTM-809 anti-sulfuration testing
Power Shunts
PSL2 Large Current Sense Resistors, Ultra Low Resistance, 2-Terminal
- Resistance range: 0.2, 0.3, 0.5mΩ
- Power rating: 8W, 9W
- TCR: ±115, ±175, 250 ~ ±100ppm/°C
- Tolerance: ±1%
PSF4 Large Current Sense Resistors, Ultra Low Resistance, 4-Terminal, Low TCR
- Resistance range: 0.5, 1mΩ
- Power rating: 3W, 5W
- TCR: ±50ppm/°C
- Tolerance: ±1%
HS Large Current Sense Resistors, Ultra Low Resistance
- Resistance Range: 0.05, 0.1, 0.2mΩ
- Power Rating: 18W, 36W, 50W
- Size: 4015 (mm)
- Tolerance: ±5%
- TCR: 50±25ppm/°C
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Long-Range Radar
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Long-Range Radar
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
HV73V 1J AT, 2A AT, 2B AT High Voltage for Automotive Resistors
- AEC-Q200 Tested
- Maximum working voltage as high as 350V (0603), 800V (1206)
- Superior to RK73 in maximum working voltage
- Working voltage: 350V ~ 800V
- Resistance range: 10K ~ 51MΩ
- Sizes: 0603 ~ 1206
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
MWS Mold Wirewound Resistors NEW
- Ultra precision TCR up to ±2.5ppm/°C
- Low tolerance: ±0.01%, ~ ±0.5%
- Wide resistance range: 10 ~ 1MΩ
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
RCR Anti-Surge Resistors
- Excellent anti-surge characteristics
- Stable characteristics of moisture resistance up to 100MΩ resistance range
- RCR50+, RCR50EN (1M ~ 12MΩ ), RCR60 (1M ~ 12MΩ ) are conductivepath and discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ ), RCR60 (100k ~ 56MΩ ) are approved by EN6268-1 G.10 safety
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
End of Life and NRND Products
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- High Voltage Flat Chip Resistor for Automotive
- AEC-Q200 Qualified
- Passes ASTM-809 anti-sulfuration testing
Power Shunts
PSL2 Large Current Sense Resistors, Ultra Low Resistance, 2-Terminal
- Resistance range: 0.2, 0.3, 0.5mΩ
- Power rating: 8W, 9W
- TCR: ±115, ±175, 250 ~ ±100ppm/°C
- Tolerance: ±1%
PSF4 Large Current Sense Resistors, Ultra Low Resistance, 4-Terminal, Low TCR
- Resistance range: 0.5, 1mΩ
- Power rating: 3W, 5W
- TCR: ±50ppm/°C
- Tolerance: ±1%
HS Large Current Sense Resistors, Ultra Low Resistance
- Resistance Range: 0.05, 0.1, 0.2mΩ
- Power Rating: 18W, 36W, 50W
- Size: 4015 (mm)
- Tolerance: ±5%
- TCR: 50±25ppm/°C
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Sensing Camera
- Heat Shock Resistance
- Precision Thick Film
- Thin Film
- Wide Terminal Thick Film
- Molded Chip Resistors
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: High Precision
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film Current Sense
- Wide Terminal Thick Film
- Metal Plate
- Varistors
- High Voltage Circuit Leaded
- Platinum Thin Film Thermal Sensors
- End of Life and NRND Products
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Sensing Camera
Heat Shock Resistance
RK73B General Purpose 2%, 5% Tolerance Thick Film Chip Resistors
- ±2%, ±5% General Purpose Flat Chip Resistor
- Sizes: 01005 - 2512
RK73H Precision 0.5%,1% Tolerance Thick Film Chip Resistors
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Sizes: 01005 - 2512
RK73G High Precision Thick Film Resistors
- Resistive film applies a metal glaze thick film to achieve excellent heat resistance
- TCR: ±50ppm/°C
- Resistance Range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- Sizes Available: 0201 ~ 1206
SG73 Pulse/Surge Resistors
- Superior to RK73 series in surge/pulse withstanding voltage
- Resistance range: 1 ~ 1MΩ
- Sizes available: 0603 ~ 2512
- Tolerance: ±10%, ±20%
SG73S Surge Protection Resistors
- Endures the ESD limiting voltage
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ±5%
SG73P Pulse Precision Resistors
- Provides higher pulse ratings than standard RK73
- Resistance range: 1 ~ 10MΩ
- Sizes available: 0402~1210
- 0.75W (1210), 1W (1210)
- Tolerances: ±0.5%, ±1%, ±2%, ± 5%
SG73G Endured Pulse Power Resistors
- Ultra precision grade
- TCR: ±50ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0603 ~ 1206
- Tolerance: ±0.25%, ±0.5%
RK73Z Zero Ohm Jumper Thick Film Chip Resistors
- Zero Ohm with max. resistance of 50mΩ
- Sizes: 01005 - 2512
HV73V 1J AT, 2A AT, 2B AT High Voltage for Automotive Resistors
- AEC-Q200 Tested
- Maximum working voltage as high as 350V (0603), 800V (1206)
- Superior to RK73 in maximum working voltage
- Working voltage: 350V ~ 800V
- Resistance range: 10K ~ 51MΩ
- Sizes: 0603 ~ 1206
Precision Thick Film
RS73 Ultra Precision High Reliability Thick Film Resistors
- Excellent long-term stability with ΔR of ±0.2% & ±0.5% in the reliability test
- Power rating: 0.2W (0603), 0.25W (0805), 0.33W (1206)
- Low TCR: ±25ppm/°C, ±50ppm/°C
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- Resistance range: 10 ~ 1MΩ
Thin Film
RN73H High Reliability Thin Film Resistors
- Improved moisture resistance with high humidity coating
- High precision tolerance: ±0.05% ~ ±1%
- High performance TCR: ±5 ~ ±100ppm/°C
- Resistance range: 10 ~ 1MΩ
- Sizes: 0402 ~ 1210
- AEC-Q200 Qualified
Wide Terminal Thick Film
WK73R Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Sizes available: 0204 ~ 1225
- Resistance range: 10 ~ 1MΩ
WK73R (Higher Power) Wide Terminal Resistors
- Offers excellent heat radiation & achieves rated power
- Power rating: 0.33W ~ 2W
- Higher power rating: 1W (0508), 1.5W (0612), 2W (1020), 3W (1225)
- Resistance range: 10 ~ 1MΩ
WG73 Surge Current Wide Terminal Resistors
- Superior to WK73 in pulse withstanding voltage
- Power rating: 1W (0612, 1020), 2W (1225)
- Resistance range: 560m ~ 1KΩ
- Tolerance: ±10%, ±20%
Molded Chip Resistors
SLR1 Mold Type Thick Film Resistors NEW
- Power rating: 1W
- Resistance values: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
MWS Mold Wirewound Resistors NEW
- Ultra precision TCR up to ±2.5ppm/°C
- Low tolerance: ±0.01%, ~ ±0.5%
- Wide resistance range: 10 ~ 1MΩ
High Temperature
HSG73P High Temperature Flat Chip Resistors NEW
- Maximum operating temperature is 200°C.
- Excellent heat resistance and weather reistance are ensured by the use of metal glaze thick film
- High stability and high reliability with the triple-layer structure of electrode
- Superior to RK73 series chip resistors pulse withstanding voltage and high power
- Applicable to various kinds of automatic mounters for taping, etc
- AEC-Q200 Tested
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT General Purpose 2%, 5% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±2%, ±5% General Purpose Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Passes ASTM-809 anti-sulfuration testing
RK73Z-RT Zero ohm Jumper Thick Film Chip Resistors (Anti-Sulfur)
- Excellent anti-sulfur characteristics (see page 7)
- Zero ohm with max. resistance of 50m?
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: High Precision
RK73G-RT High Precision Thick Film (Anti-Sulfur)
- Excellent anti-sulfur characteristics
- ±0.5%, ±1% Ultra Precision Flat Chip Resistor
- Low TCR: ±50ppm/°C
- Passes ASTM-809 anti-sulfuration testing
RS73-RT Ultra Precision High Reliability Thick Film Resistors (Anti-Sulfur)
- High reliability with Δ R of ±0.2%, ±0.4% in reliability test
- Low TCR: ±25ppm/°C
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Low Resistance (0.1Ω)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Wide Terminal (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Power rating: 0.75W (0508, 0612), 1W (0508, 0612, 1020, 1218), 1.5W (1225), 2W (1225)
- Passes ASTM-809 anti-sulfuration testing
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Superior to RK73 series in surge withstanding voltage and pulse withstanding voltage
- Power rating: 0.1W, 0.125W, 0.33W, 0.5W, 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73S-RT Surge Protection (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Surge Precision
- Low Resistance (0.1Ω)
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
SG73P-RT Pulse Precision (Anti-Sulfur) Resistors
- Excellent anti-sulfur characteristics
- Able to select resistance from +0.5%
- Power rating: 0.75W, 1W
- Passes ASTM-809 anti-sulfuration testing
Thick Film Current Sense
UR73V High Heat, Low Resistance, Low TCR Resistors
- Operating temp range: -55°C ~ +155°C
- Resistance range: 10m ~ 100mΩ
- TCR: ±75, 0 ~ +150, 0 ~ +250 ~ ±100ppm/°C
- AEC-Q200 Qualified
SR73 Low Resistance, Thick Film Resistors
- Resistance range: 24m ~ 10Ω
- Power rating: 0201-0.1W ~ 2512-2W
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
Wide Terminal Thick Film
WK73S Low Resistance, Wide Terminal Resistors
- Power rating: 0508-1W, 0612-0.75W, 1020-1W, 1218-1W, 1225-1.5W, 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
WU73 Low Resistance, Wide Terminal Resistors
- Power rating: 0612-1W, 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- Low TCR: ±75, ±100ppm/°C
Metal Plate
TLR (to 2W) Current Sense Resistors, Standard Power
- Power rating: 1206-0.5W, 2010-1W, 2512-2W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLR (0805) Current Sense Resistors Reduced Size
- Power rating: 0805-1W
- Resistance range: 2 ~ 10mΩ
- TCR: ±100ppm/°C
- Tolerance: ±1%, ±2%, ±5%
TLR (to 5W) Current Sense Resistors, Higher Power
- Power rating: 1206-1W, 1.5W, 2010-2W, 2512- 3W, 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRH Current Sense Resistors, Higher Resistance Range
- Power rating: 0805-0.25W, 0.33W, 0.5W, 2512-2W, 4W, 5W
- Resistance range: 6 ~ 270mΩ
- TCR: ±50, ±75ppm/°C
- Tolerance: ±1%
TLRZ Current Sense Resistors, Zero Ohm Jumpers
- Current Ratings: 0402-10A, 0603- 26A, 0805-31.6A, 1206-50A
- Ultra low resistance not to exceed 0.2mΩ
- Operating temperature: -55 ~ +170°C
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- Max. energy type up to 1.5J
- High resistance to cyclic temperature stress
- Varistor voltage: 10 ~ 90V1mA
- Sizes available: 0603 ~ 1206
- AEC-Q200 Qualified
NV73DS Load Dump Surge Metal Oxide Varistors
- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
NRND - Not Recommended for New Design
High Voltage Circuit Leaded
CPCN Fixed Ceramic Resistors
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Power rating: 0.5W, 1W, 1.5W, 2W
- TCR: -1200 ±300ppm/°C
RCR Anti-Surge Resistors
- Excellent anti-surge characteristics
- Stable characteristics of moisture resistance up to 100MΩ resistance range
- RCR50+, RCR50EN (1M ~ 12MΩ ), RCR60 (1M ~ 12MΩ ) are conductivepath and discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ ), RCR60 (100k ~ 56MΩ ) are approved by EN6268-1 G.10 safety
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
