KOA Speer Flat Panel TV (LCD)
Flat Panel TV(LCD)

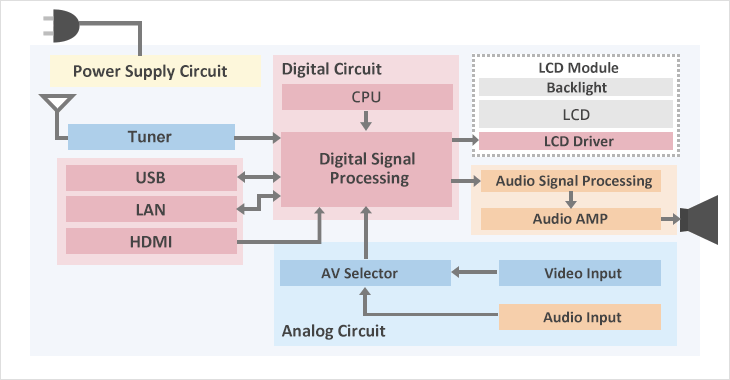

A Power Supply Circuit
| Surface Mounting Type | Leaded Type | |
|---|---|---|
| Resistors | RK73G, RK73H, RK73B | CF |
| High Voltage / Resistors | HV73 | |
| High Power Rating / Resistors | WK73R, SL, SLR |
MOS(X), SPR(X), CW |
| Current Sensing / Resistors | SL,
SR73,
UR73(D),
WK73S
,
TLRH,
TLR |
MOS(X), SPR(X), BPR |
| Discharge Path/ Resistors | HV73 |
RCR |
| Inrush Current Resistant / Resistors | CW, BWR, BGR |
|
| Circuit Protection / Fuses | CCF1F,
CCF1N |
|
| Large Current Jumper / Jumpers | TLRZ |
