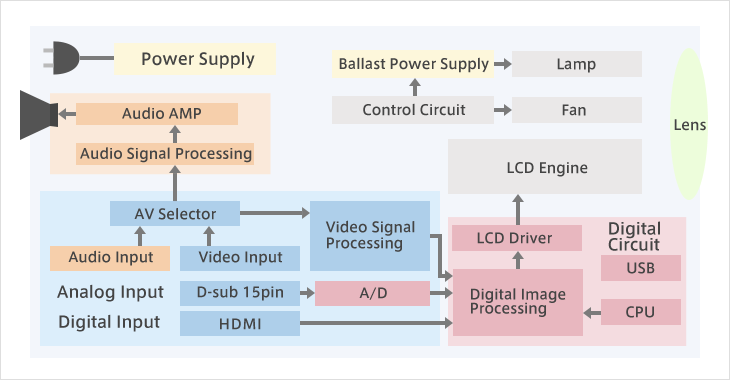

LCD Projector

A Control Circuit

Surface Mounting Type Leaded Type
Resistors RK73G, RK73H, RK73B
Overheat Protection / Linear Resistors LT73, LP73

B Ballast Power Supply

Surface Mounting Type Leaded Type
Resistors RK73G, RK73H, RK73B CF
High Precision / Resistors RN73H, RN73R, RS73 MF
High Power Rating / Resistors WK73R, SL, SLR MOS(X), SPR(X), CW, BPR
Current Sensing / Resistors MOS(X), SPR(X), BPR
Surge Resistant / Resistors SG73S, SG73P, SG73, SG73G, WG73 RCR, GS
Circuit Protection / Fusing Resistors RF73 RF
Inrush Current Resistant / Resistors CW, BWR, BGR, BPR
High Current Jumper/Jumpers TLRZ

C Digital Circuit

Surface Mounting Type Leaded Type
Resistors RK73G, RK73H, RK73B
High Precision / Resistors RN73H, RN73R, RS73
Circuit Protection / Fuses TF16SN
ESD Protection /Varistors NV73
Check Terminal / Checker Chips RCT, RCU

D Analog Circuit

Surface Mounting Type Leaded Type
Resistors RK73G, RK73H, RK73B
Circuit Protection / Fuses CCF1N, TF16AT
ESD Protection / Varistors NV73
Temperature Compensation / Linear Resistors LT73, LP73
Check Terminal / Checker Chips RCT, RCU

E Audio Signal Processing/Audio Amplifier

Surface Mounting Type Leaded Type
Resistors RK73G, RK73H, RK73B

F Power Supply

Surface Mounting Type Leaded Type
Resistors RK73G, RK73H, RK73B CF
High Precision / Resistors RN73H, RN73R, RS73 MF
High Power Rating / Resistors WK73R, SL, SLR MOS(X), SPR(X), CW, BPR, RW
Current Sensing / Resistors SR73, UR73, WK73S, SL, TLRH, TLR MOS(X), SPR(X), BPR
Discharge Path/ Resistors HV73 RCR
Surge Resistant / Resistors SG73S, SG73P, SG73, SG73G, WG73
Circuit Protection / Fusing Resistors RF73 RF
Inrush Current Resistant / Resistors CW, BWR, BGR, BPR
Circuit Protection / Fuses CCF1N
High Current Jumper /Jumpers TLRZ
Array ( ) LCD Projector
