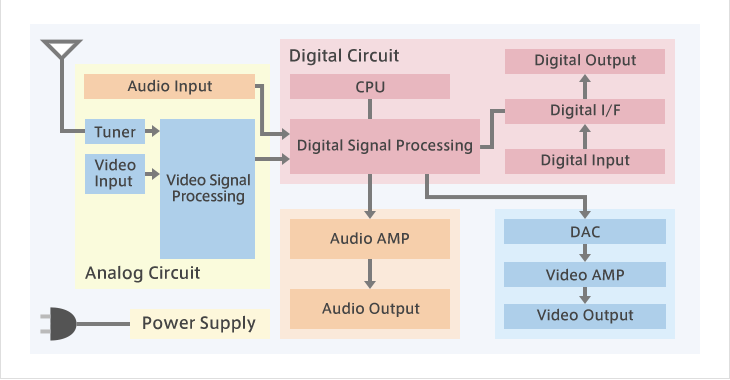

Set Top Box (STB)

A Audio Signal Processing / Audio Amplifier

Surface Mounting Type Leaded Type
Resistors RK73G, RK73H, RK73B

B Video Signal Processing / Video Amplifier

Surface Mounting Type Leaded Type
Resistors RK73G, RK73H, RK73B
Circuit Protection / Fuses CCF1N, TF16AT
ESD Protection / Varistors NV73
Check Terminal / Checker Chips RCT, RCU

C Digital Circuit

Surface Mounting Type Leaded Type
Resistors RK73G, RK73H, RK73B
High Precision / Resistors RN73R, RS73
Circuit Protection / Fuses TF16SN
ESD Protection / Varistors NV73

D Analog Circuit

Surface Mounting Type Leaded Type
Resistors RK73G, RK73H, RK73B
Circuit Protection / Fuses CCF1N, TF16AT
ESD Protection / Varistors NV73
Temperature Compensation / Linear Resistors LT73, LP73
Check Terminal / Checker Chips RCT, RCU

E Tuner

Surface Mounting Type Leaded Type
Resistors RK73G, RK73H, RK73B

F Power Supply Circuit

Surface Mounting Type Leaded Type
Resistors RK73G, RK73H, RK73B CF
High Precision / Resistors RN73H, RN73R, RS73 MF
High Power Rating / Resistors WK73R, SL, SLR MOS/MOSX, SPR(X), CW
Current Sensing / Resistors SR73, UR73, WK73S, SL, TLRH, TLR MOS(X), SPR(X), BPR
Discharge Path/ Resistors HV73 RCR
Inrush Current Resistant / Resistors CW, BWR, BGR
Circuit Protection / Fuses CCF1N
