KL73 Thin Film Inductor
EOL - End of Life
![KL73](./images/KL73.jpg)
Features
- Excellent for high frequency applications
- Low DC resistance and high Q
- Operating temperature: -40°C ~ +125°C
- Low tolerance ±2% available
- Small size allows for high density mounting (1E, 1J, 2A, 2B)
- Marking: Yellow marking on blue protective coating (1E, 1J, 2A, 2B)
- Products with lead-free terminations meet EU RoHS and China RoHS requirements
- AEC-Q200 Tested

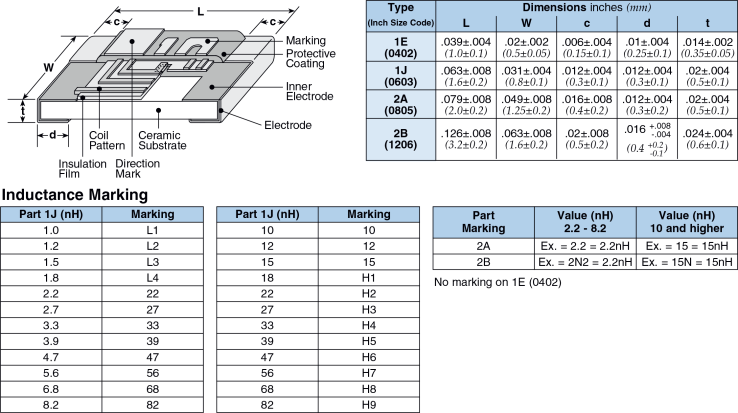

![Dimensions and Construction](./images/charts/KL73_1.png)

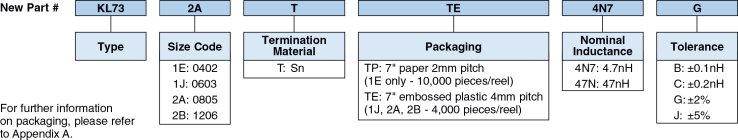

Ordering Information CHECK INVENTORY ORDER SAMPLES
![Ordering Information](./images/charts/KL73_2.png)

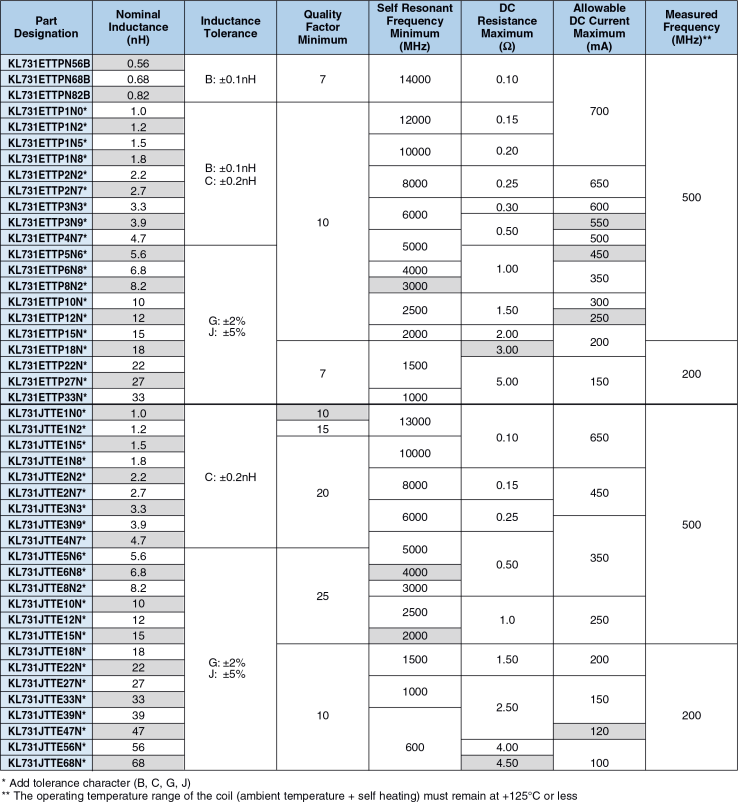

![Applications and Ratings](./images/charts/KL73_3.png)

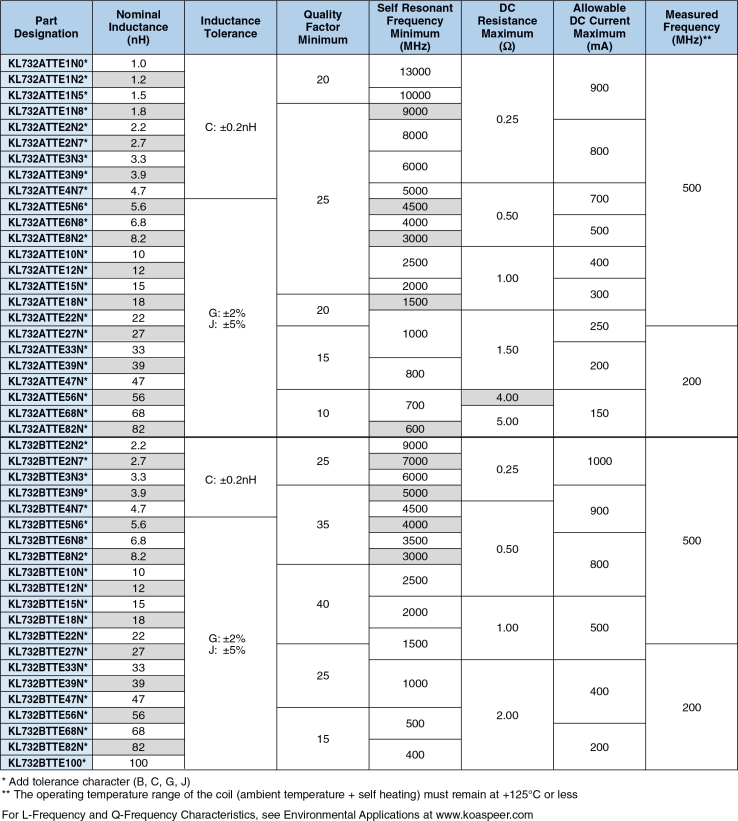

![Applications and Ratings](./images/charts/KL73_4.png)

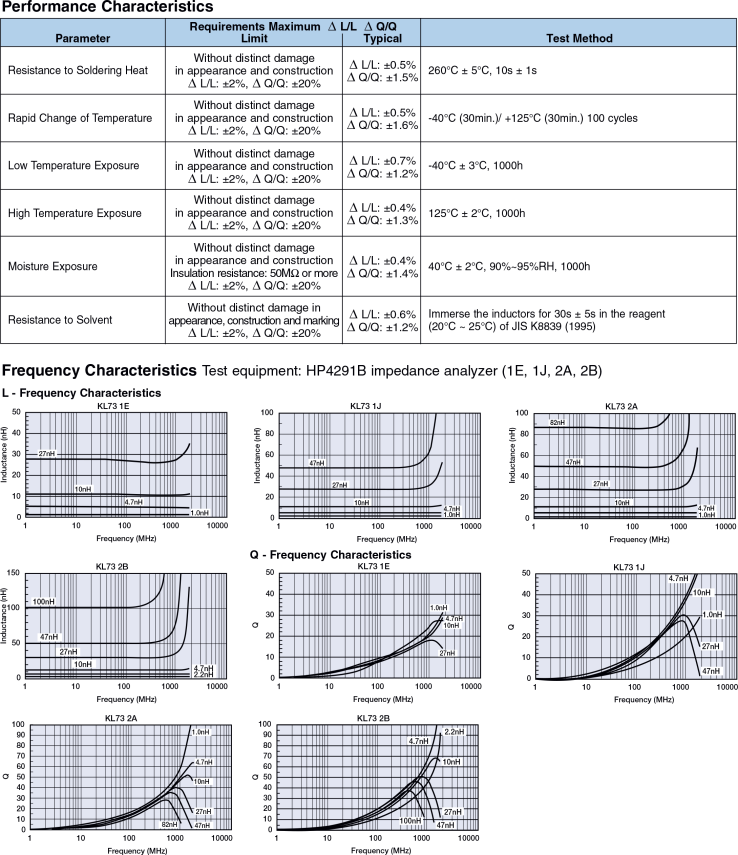

![Environmental Applications](./images/charts/KL73_5.png)
Last Updated: 2/11/2019
