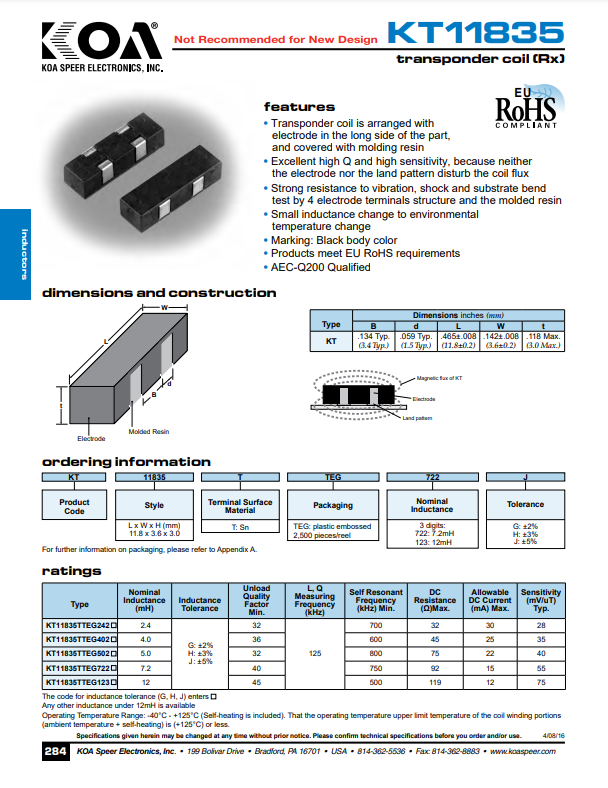

KT11835 Transponder Coil (Rx)
Not Recommended for New Design
Features
- Transponder coil is arranged with electrode in the long side of the part, and covered with molding resin
- Excellent high Q and high sensitivity, because neither the electrode nor the land pattern disturb the coil flux
- Strong resistance to vibration, shock and substrate bend test by 4 electrode terminals structure and the molded resin
- Small inductance change to environmental temperature change
- Marking: Black body color
- Products meet EU RoHS requirements
- AEC-Q200 Tested
Ordering Information CHECK INVENTORY ORDER SAMPLES
Last Updated: 2/11/2019
