LF Radial Metal Film Leaded Resistor
EOL - End of Life
![LF-LFF-RK26](./images/LF-LFF-RK26.jpg)
Features
- Lead frame construction
- High density assembly and excellent self-standing strength
- Products with lead-free terminations meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in electrode, resistor element and glass.

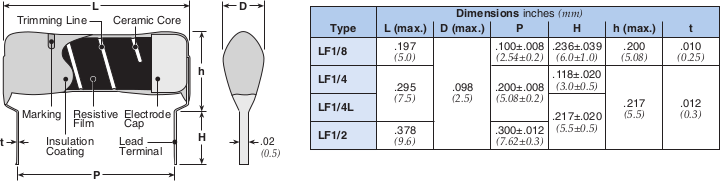

![Dimensions and Construction](./images/charts/LF_1.png)
Ordering Information CHECK INVENTORY ORDER SAMPLES

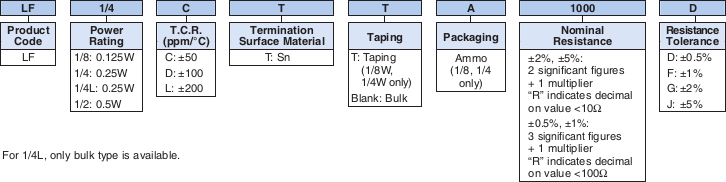

![Ordering Information](./images/charts/LF_2.png)

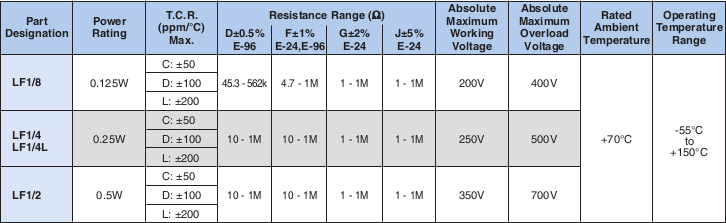

![Applications and Ratings](./images/charts/LF_3.png)

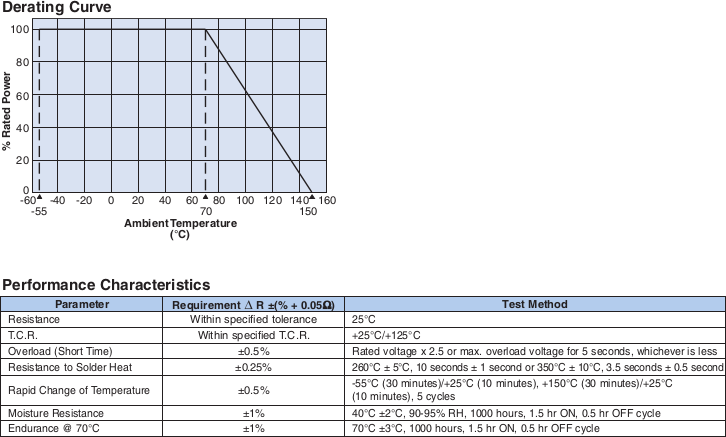

![Environmental Applications](./images/charts/LF_4.png)
Last Updated: 6/23/2022
