WF Thermal Fuse Built-in Resistors
EOL - End of Life
![WF](./images/WF.jpg)
Features
- Wide resistance range and thermal cut-off temperature
- Resistor with quick current break ability for cement resistor and thermal fuse
- Products with lead-free terminations meet EU RoHS requirements. Pb located in glass material, electrode and resistor element is exempt per Annex 1, exemption 5 of EU directive 2005/95/EC

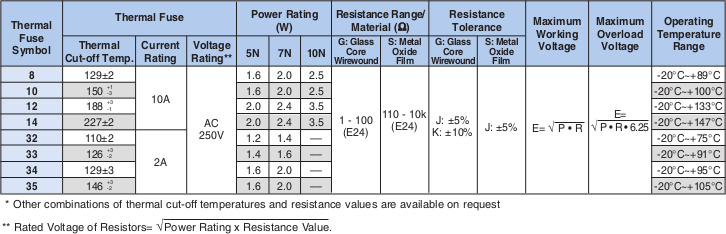

![Applications and Ratings](./images/charts/WF_3.png)

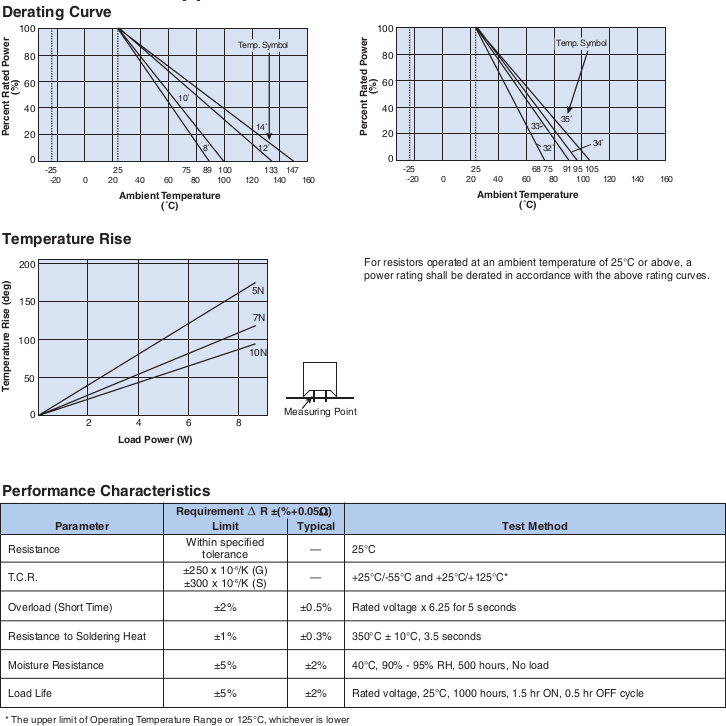

![Environmental Applications](./images/charts/WF_4.png)
Last Updated: 2/11/2019
