CN_K, CN_N Isolated Chip Networks-Convex Termination, Square Corners
- Home
- End of Life and NRND Products
- CN_K, CN_N
EOL - End of Life

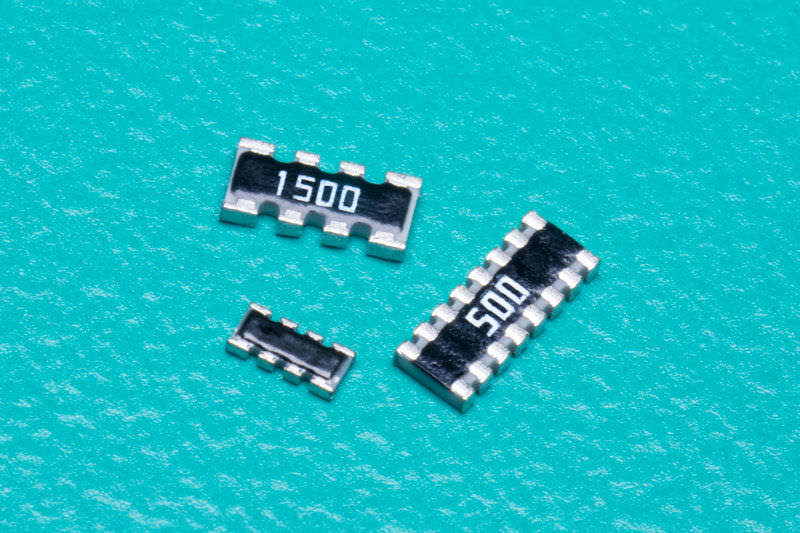

![CN___K:N](./images/CN___K_N.jpg)
Features
- Manufactured to type RK73 standards
- Less board space than individual chips
- Isolated resistor elements
- Convex terminations with square corners (CN_K)
- Flat termination with square corners (CN_N)
- Products with lead-free terminations meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in electrode, resistor element and glass.
- AEC-Q200 Tested: CN1E4K and CN1J4K only

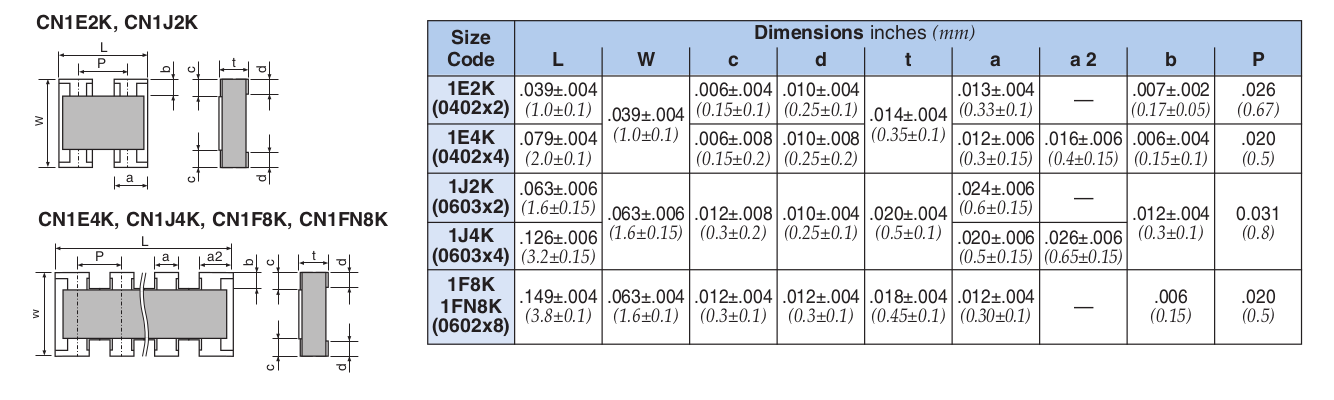

![Dimensions and Construction](./images/charts/CN-K-N_1.png)

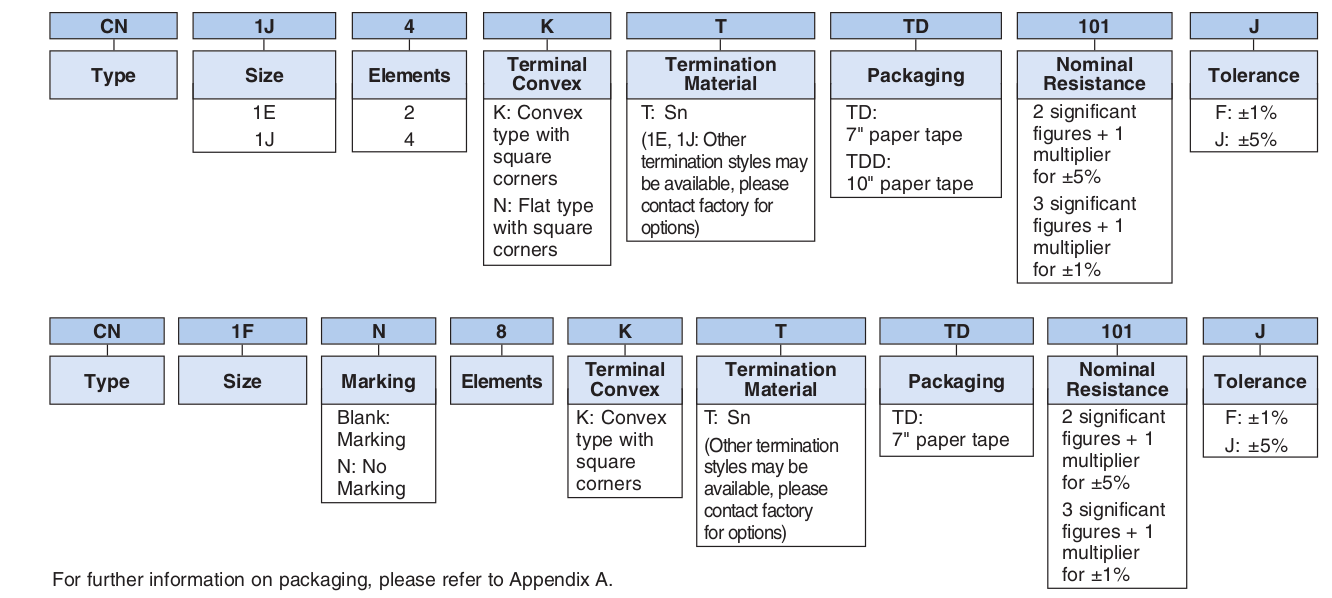

Ordering Information CHECK INVENTORY ORDER SAMPLES
![Ordering Information](./images/charts/CN-K-N_2.png)

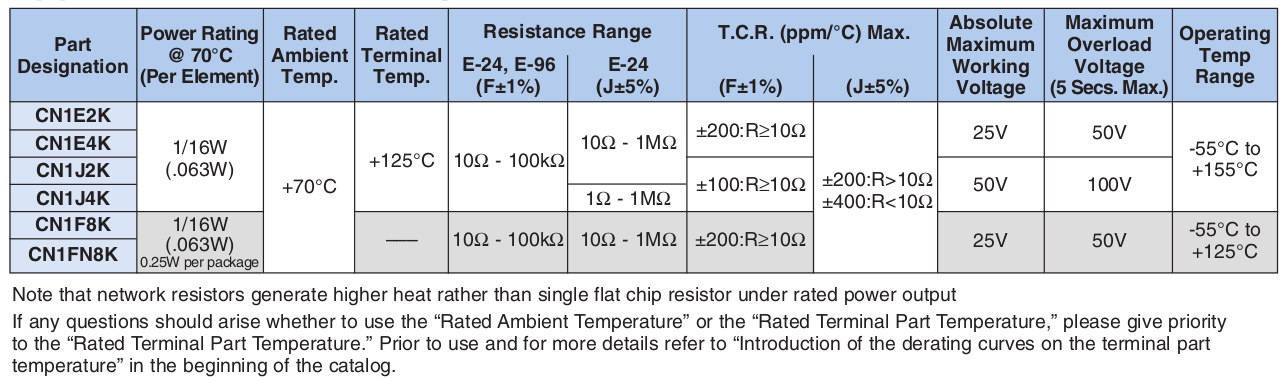

![Applications and Ratings](./images/charts/CN-K-N_3.png)

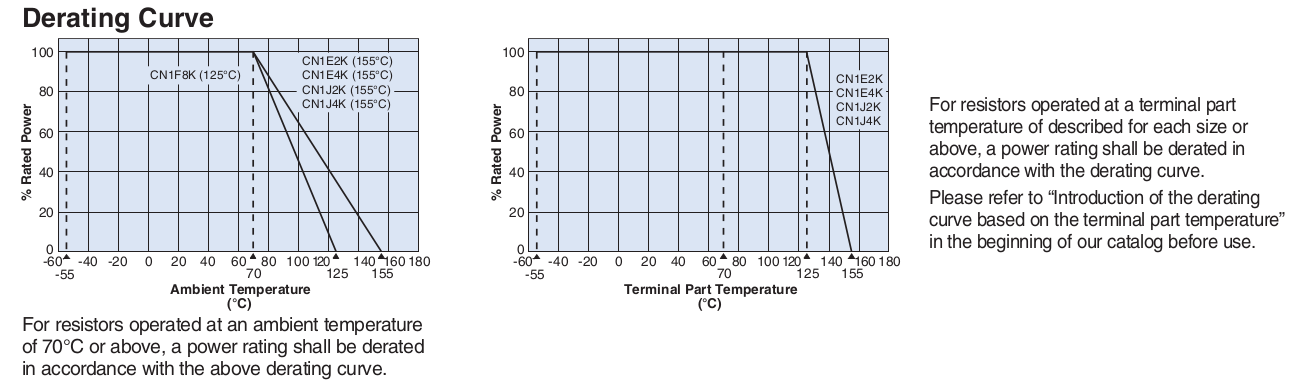

![Environmental Applications](./images/charts/CN-K-N_4.png)

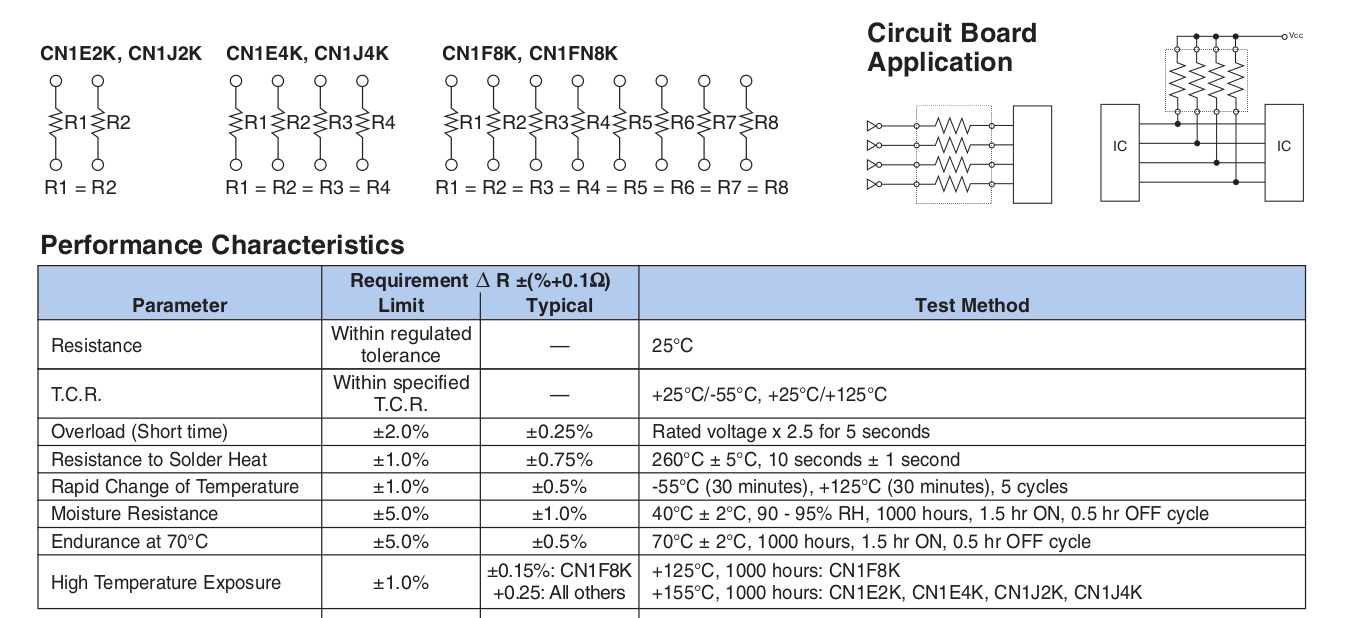

![Circuit Schematic](./images/charts/CN-K-N_5.png)
Last Updated: 2/11/2019
