CN_KRT Isolated Chip Networks-Convex Termination, Square Corners (Anti-Sulfur)
EOL - End of Life

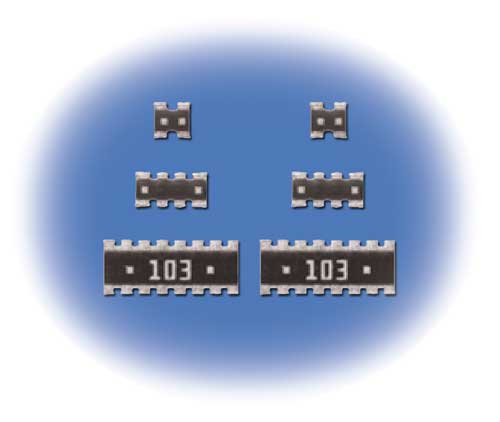

![CN-KRT](./images/CN-KRT.jpg)
Features
- Excellent anti-sulfuration characteristic due to using high sulfuration-proof inner top electrode material
- More advancement in the mounting density than individual chip resistors
- Mounting cost reduction by decreasing the number of parts to mount
- Easy soldering fillet inspection
- Suitable for an image recognition mounter due to square corner design
- Products with lead-free termination meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in electrode, resistor element and glass.

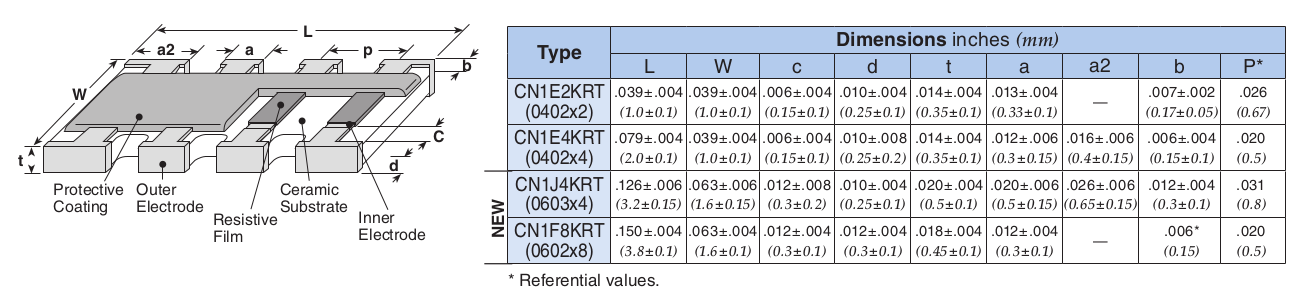

![Dimensions and Construction](./images/charts/CN-KRT_1.png)
Ordering Information CHECK INVENTORY ORDER SAMPLES

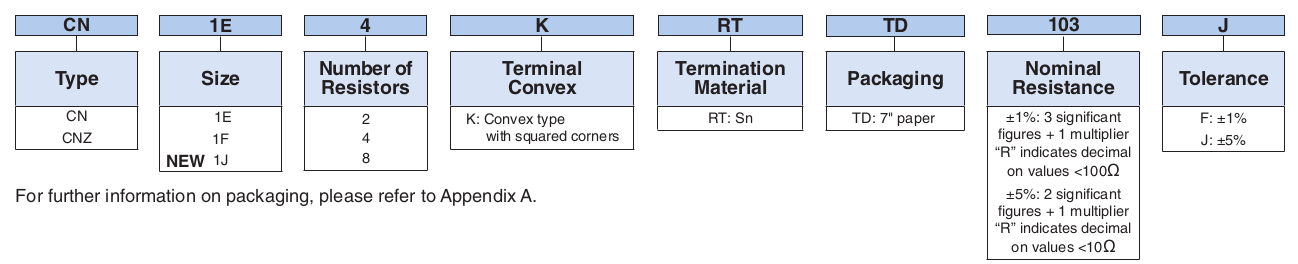

![Ordering Information](./images/charts/CN-KRT_2.png)

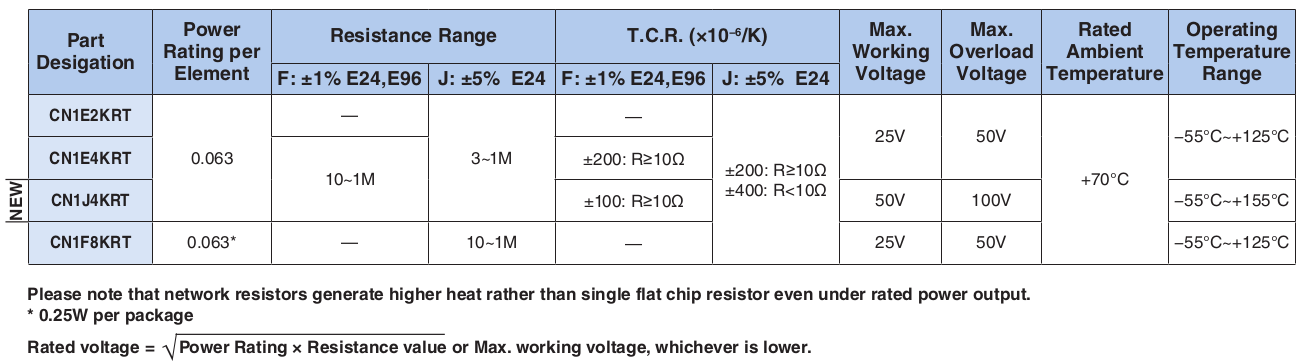

![Applications and Ratings](./images/charts/CN-KRT_3.png)

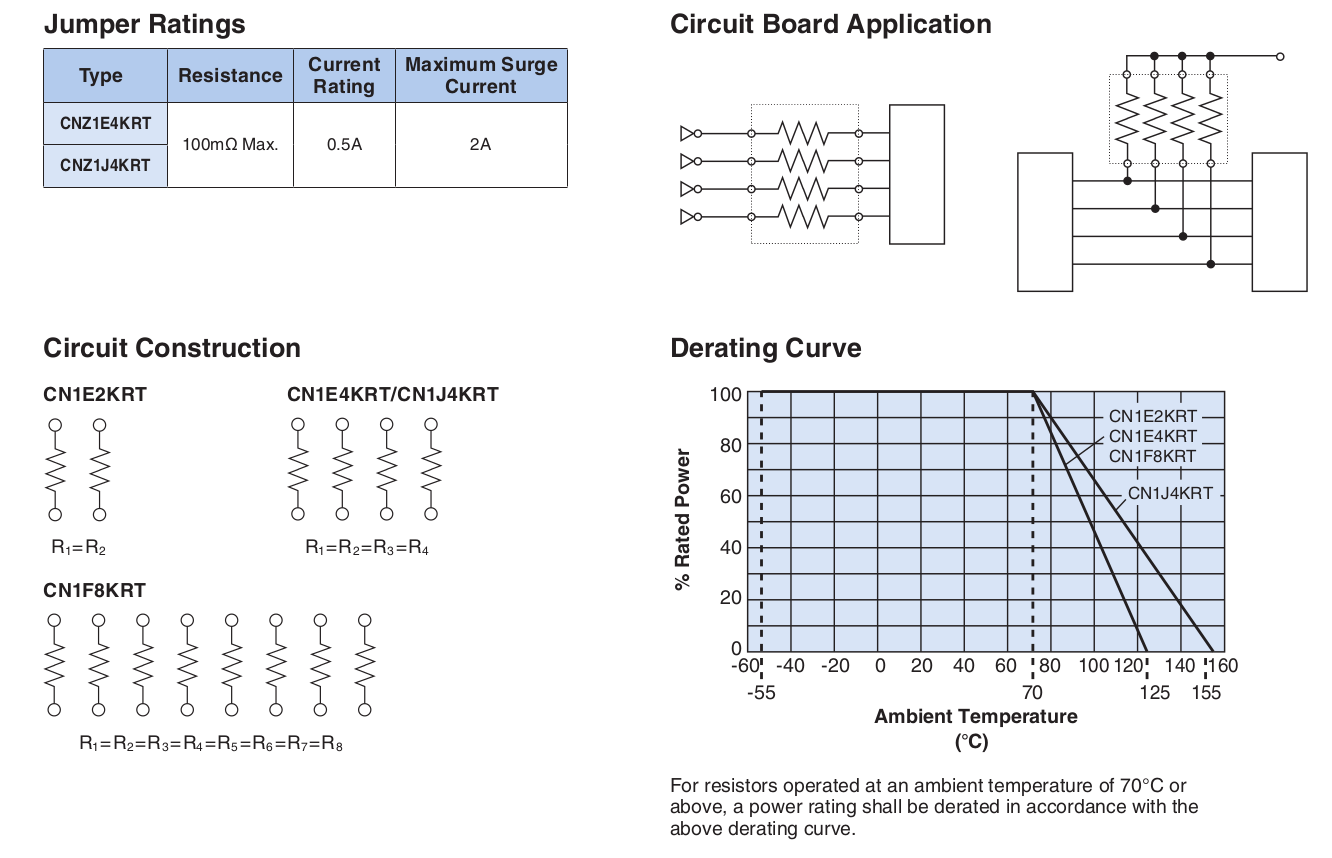

![Environmental Applications](./images/charts/CN-KRT_4.png)

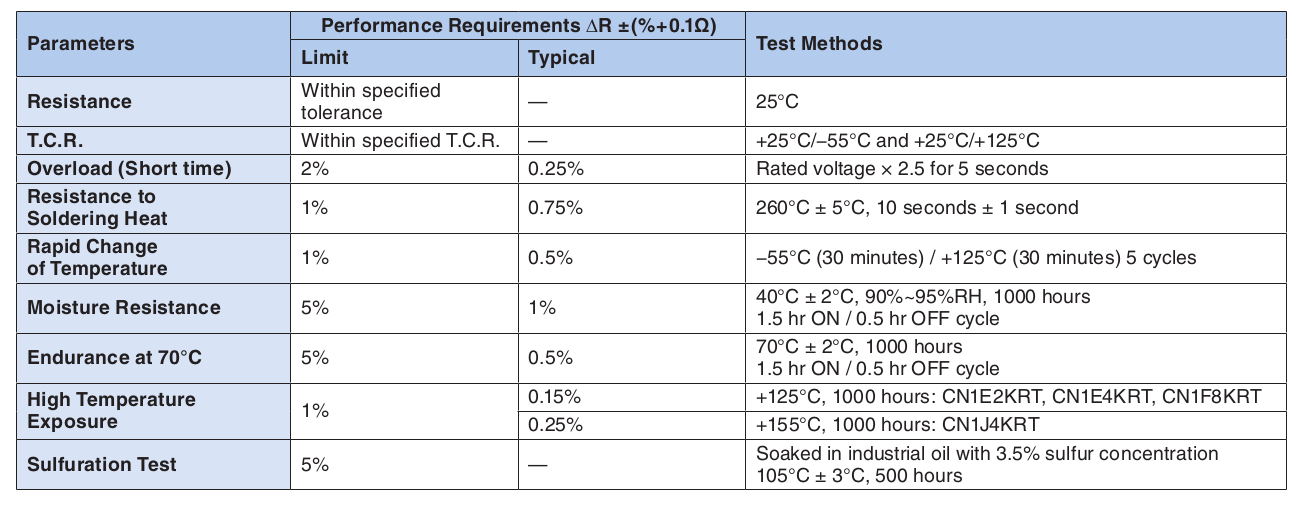

![Performance Characteristics](./images/charts/CN-KRT_5.png)
Last Updated: 2/11/2019
