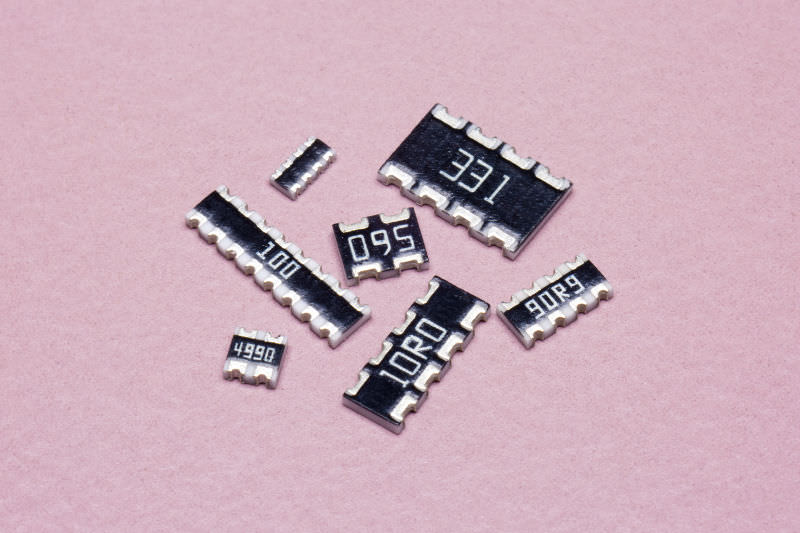

CN-RT Isolated Chip Networks-Concave Termination, Square Corners (Anti-Sulfur)
EOL - End of Life

Features
- Excellent anti-sulfuration characteristic due to using high sulfuration-proof inner top electrode material
- More advancement in the mounting density than individual chip resistors
- Mounting cost reduction by decreasing the number of parts mounting times
- Higher self-alignment effect in reflow-soldering process
- Suitable for an image recognition mounter due to square corner design
- Products with lead-free terminations meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in electrode, resistor element and glass.

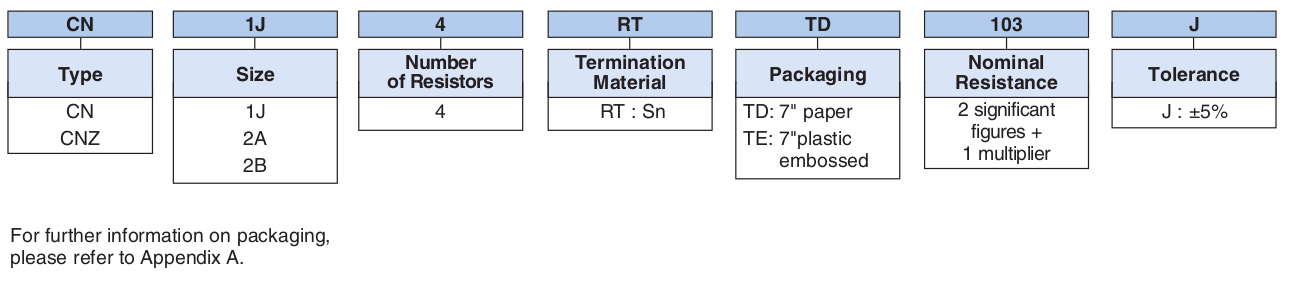

Ordering Information CHECK INVENTORY



Last Updated: 2/11/2019
