SHDR Microwave Thin Film
EOL - End of Life

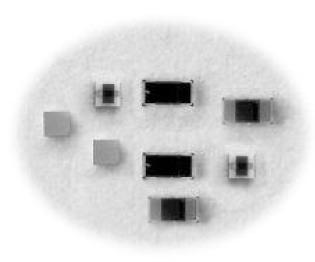

![SHDR](./images/SHDR.jpg)
Features
- Good frequency characteristics up to 15GHz: Reflection coefficient-not more than 15dB (Representative value of SHDR001, 50Ω)
- Wire-bonding form mounting
- Most suitable for terminal resistors for high frequency circuits

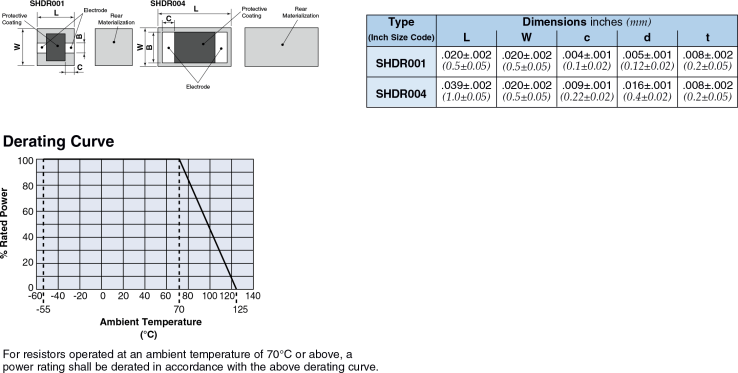

![Dimensions and Construction](./images/charts/SHDR_1.png)

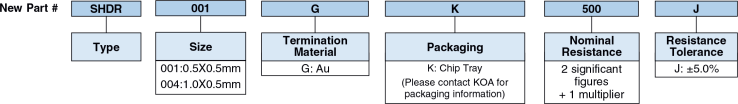

Ordering Information CHECK INVENTORY ORDER SAMPLES
![Ordering Information](./images/charts/SHDR_2.png)

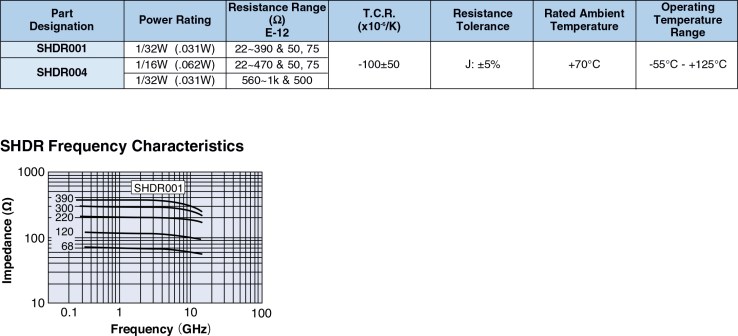

![Applications and Ratings](./images/charts/SHDR_3.png)

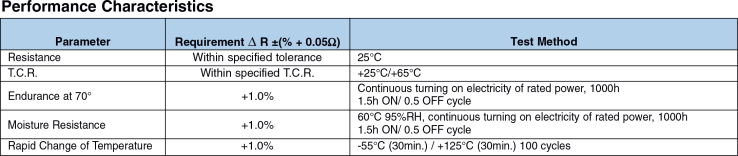

![Environmental Applications](./images/charts/SHDR_4.png)
Last Updated: 2/11/2019
