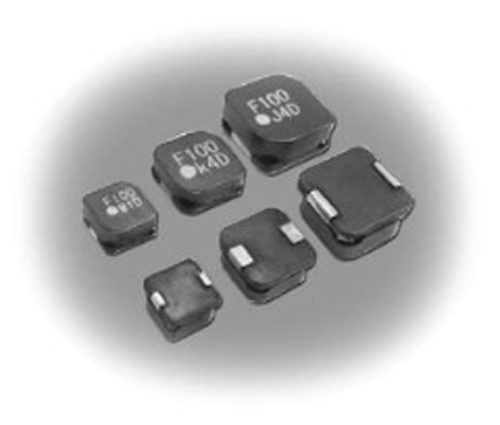

LKS Power chip inductors shielded type
EOL - End of Life
Features
- Magnetic shielded power chip inductors with a little leakage magnetic flux
- Small size and low-profile
- Low DC Resistance and larger Rated Current
- Suitable for reflow soldering
- Products meet EU RoHS requirements

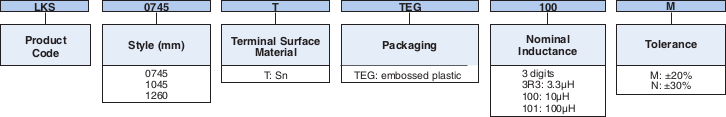

Ordering Information CHECK INVENTORY ORDER SAMPLES
Last Updated: 2/11/2019
