NVD Metal Oxide Varistor Disc Type
EOL - End of Life

Features
- Flame retardant coating (UL94V0)
- Excellent transient voltage suppression characteristics
- Higher surge current
- Wide varistor voltage
- V-I characteristics are the same in both polarity
- Products with lead-free terminations meet EU RoHS requirements

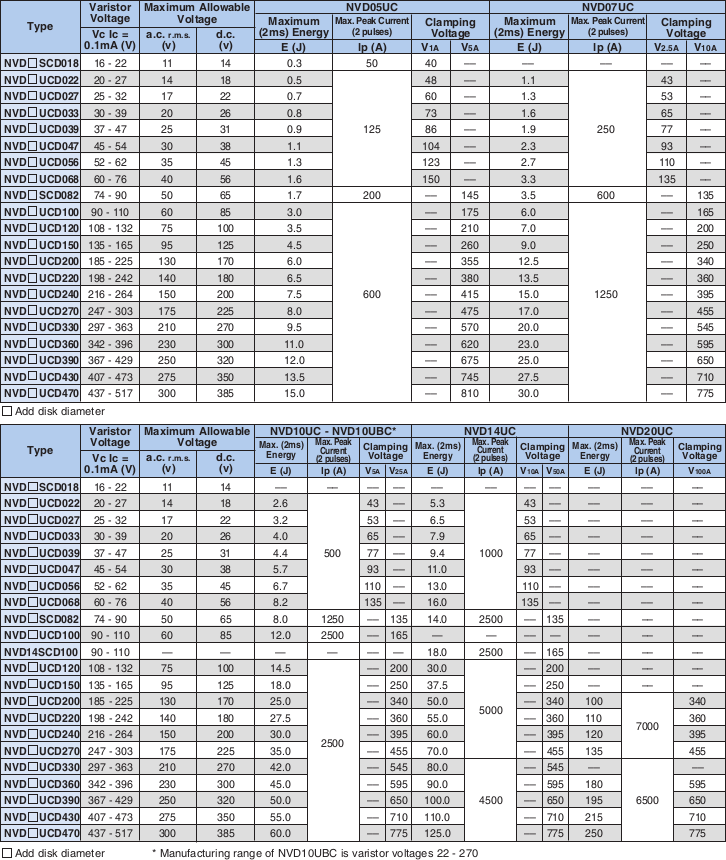

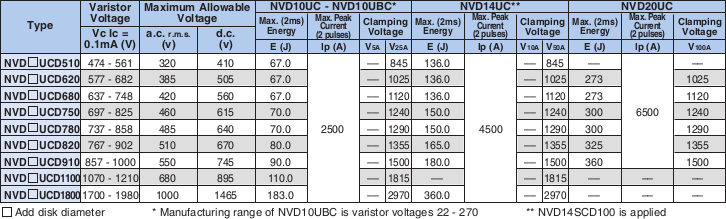

Approval Awarded and Varistor Vol..rang
UL1449 (File No. E328032) (Units (V)) Type S Series U Series NVD05 82 - 470 100 - 470 NVD07 82 - 470 100 - 470 NVD10 82 - 1100 100 - 1100 NVD14 82 - 910 120 - 910 NVD20 200 - 910 -- 200 - 910

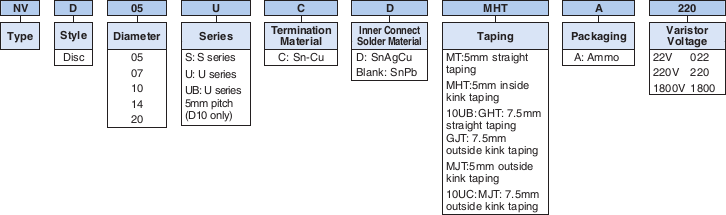

Ordering Information CHECK INVENTORY





Last Updated: 2/11/2019
