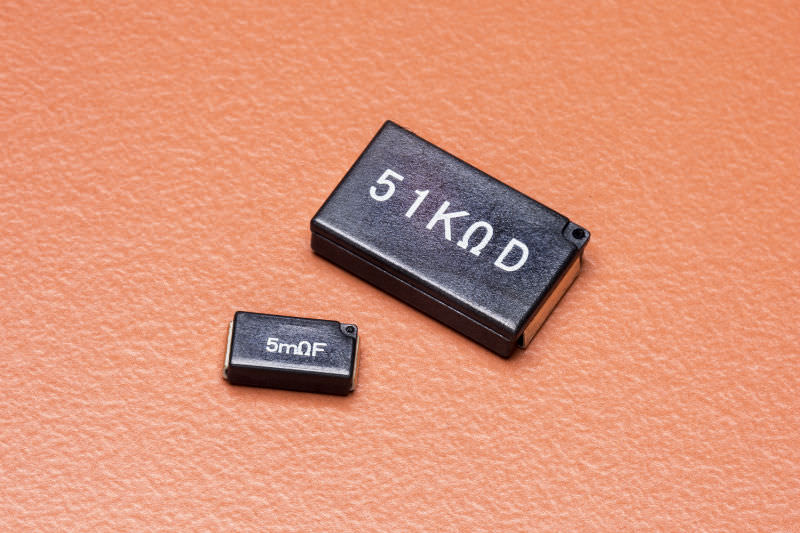

SL1, SL2 Thick Film Current Sensing
EOL - End of Life
SL1 recommended replacement, Last time to buy: 6/30/2025
105mΩ ≤ R ≤ 300mΩ: SL1T (75ppm) (lead-free)
301mΩ ≤ R ≤ 1MΩ: SLR1T (lead-free)
1MΩ < R ≤ 22MΩ: No production alternative
SL2 recommended replacement, Last time to buy: 6/30/2027
365mΩ ≤ R ≤ 1MΩ: WK73S/R3AT
1.1MΩ < R ≤ 22MΩ: No production alternative
SL1 recommended replacement, Last time to buy: 6/30/2025
105mΩ ≤ R ≤ 300mΩ: SL1T (75ppm) (lead-free)
301mΩ ≤ R ≤ 1MΩ: SLR1T (lead-free)
1MΩ < R ≤ 22MΩ: No production alternative
105mΩ ≤ R ≤ 300mΩ: SL1T (75ppm) (lead-free)
301mΩ ≤ R ≤ 1MΩ: SLR1T (lead-free)
1MΩ < R ≤ 22MΩ: No production alternative
SL2 recommended replacement, Last time to buy: 6/30/2027
365mΩ ≤ R ≤ 1MΩ: WK73S/R3AT
1.1MΩ < R ≤ 22MΩ: No production alternative
365mΩ ≤ R ≤ 1MΩ: WK73S/R3AT
1.1MΩ < R ≤ 22MΩ: No production alternative
Features
- Surface mount type of small size, high accuracy (±0.5%) with low resistance to high resistance
- Flameproof UL94V0 molded polymer case
- Excellent dimension accuracy, mountability and shock resistance
- Suitable for flow, reflow, and iron solderings
- Products with lead-free terminations meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in electrode, resistor element and glass.
- AEC-Q200 Tested
Ordering Information CHECK INVENTORY ORDER SAMPLES
Last Updated: 7/18/2022
