RK73G-RT High Precision

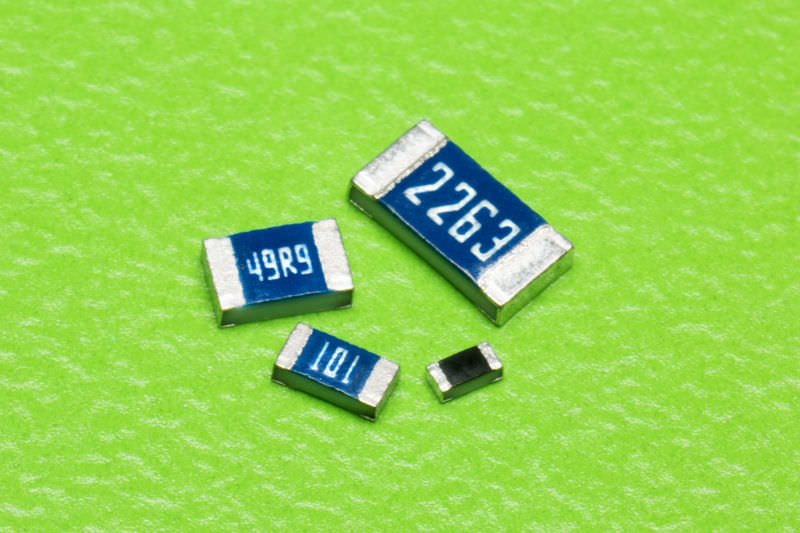

![RK73G-RT](./images/RK73G-RT.jpg)
Features
- Excellent anti-sulfuration characteristic due to using high sulfuration-proof inner top electrode material
- Metal-glaze thick film resistor for surface mounting
- High precision resistor with T.C.R. ±50x10-6/K and tolerance ±0.5%
- Suitable for both flow and reflow solderings
- Products with lead-free terminations meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in electrode, resistor element and glass.
- AEC-Q200 Tested

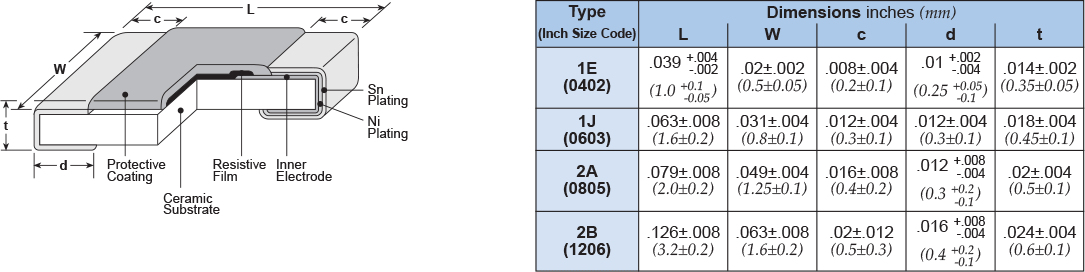

![Dimensions and Construction](./images/charts/RK73G-RT_1.png)

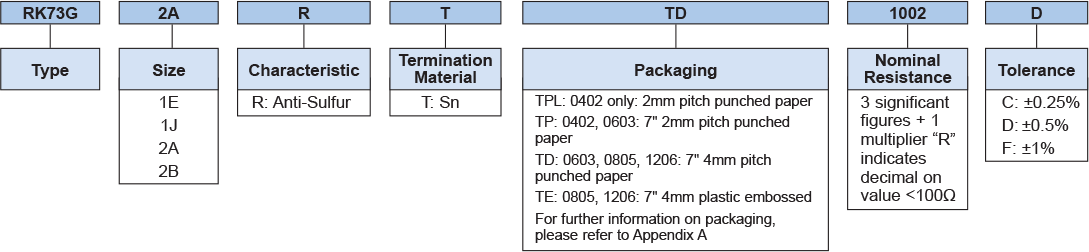

Ordering Information CHECK INVENTORY ORDER SAMPLES
![Ordering Information](./images/charts/RK73G-RT_2.png)

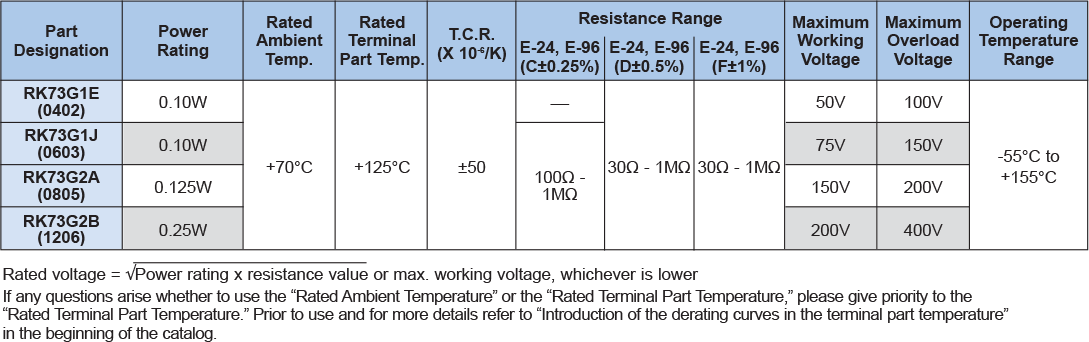

![Environmental Applications](./images/charts/RK73G-RT_4.png)
Last Updated: 10/29/2021
