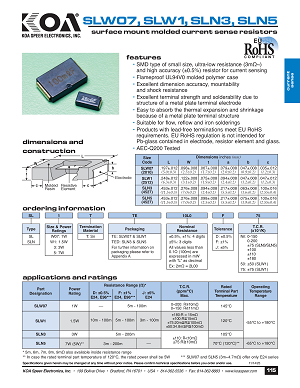

SLN3, SLN5, SLW07, SLW1 High Power

Features

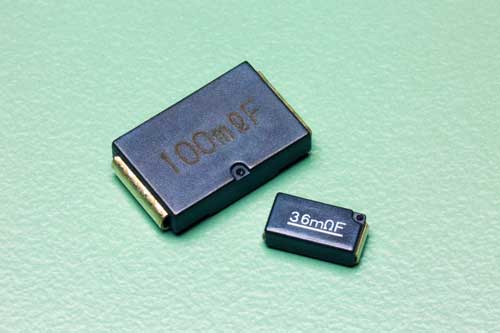

• SMD type of small size, ultra-low resistance (3mΩ~) and high accuracy (±0.5%) resistor for current sensing
• Flameproof UL94V0 molded polymer case
• Excellent dimension accuracy, mountability and shock resistance
• Excellent terminal strength and solderability due to structure of a metal plate terminal electrode
• Easy to absorb the thermal expansion and shrinkage because of a metal plate terminal structure
• Suitable for flow, reflow and iron solderings
• Products with lead-free terminations meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in electrode, resistor element and glass.
• AEC-Q200 Tested
