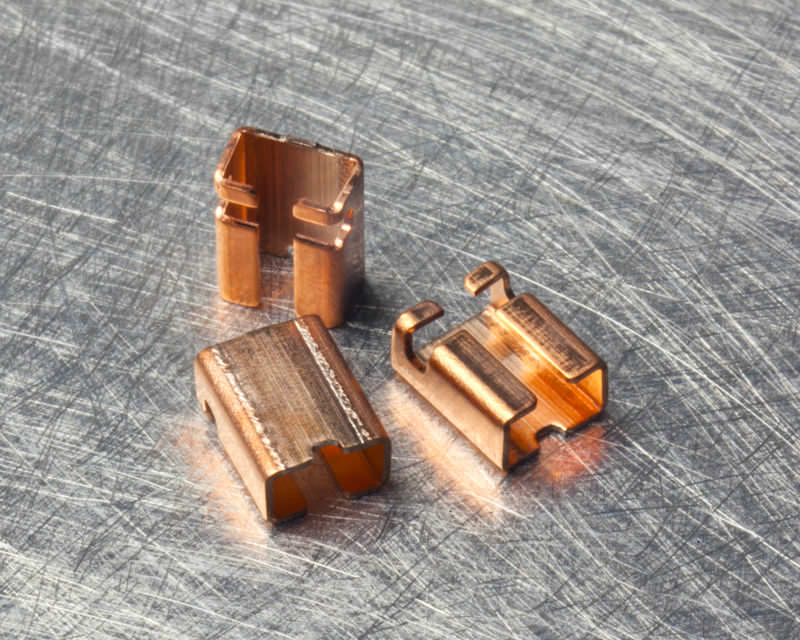

PSF4 Ultra Low Resistance, 4-Terminal

Features

• Correcter electric current detection is possible with 4-terminal construction
• Excellent T.C.R. achieved (±50x10^-6/K)
• Ultra low resistance, suitable for large current sensing
• Automatic mounting machines are applicable
• Suitable for reflow soldering (Not suitable for flow soldering)
• Products meet EU RoHS requirements
• AEC-Q200 Tested
