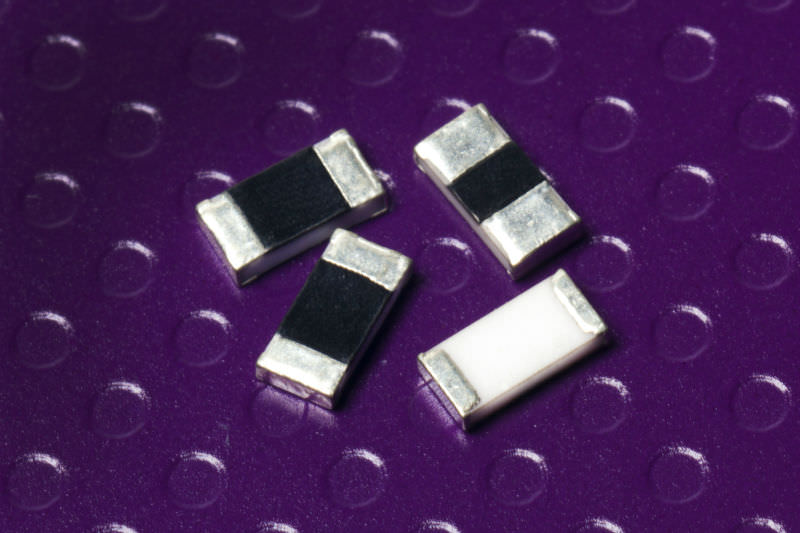

UR73V Low Resistance Flat Chip (for Automotive)

Features

• Current detecting resistors for power supplies, motor circuits, etc.
• Low resistance (100mΩ or under) and high accuracy (±1%) for current detection
• High reliability and performance with T.C.R. ±75x10^-6/K
• Suitable for flow and reflow solderings
• Products will meet EU RoHS requirements
• AEC-Q200 Tested
• Operating temperature range ~155°C
