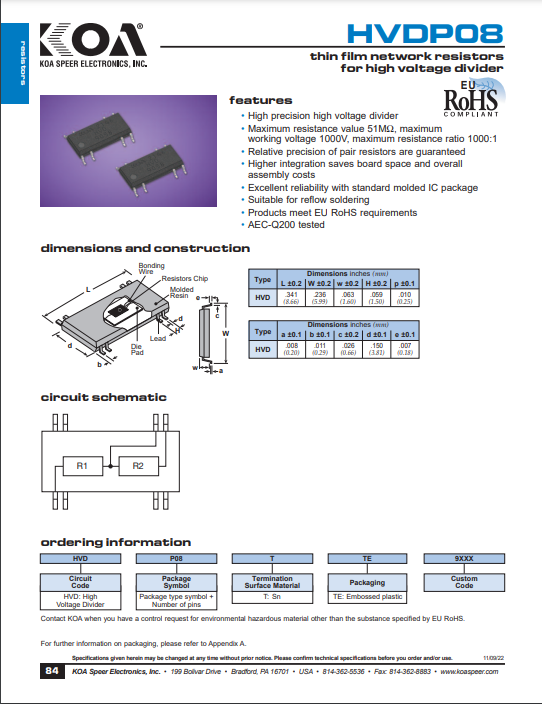

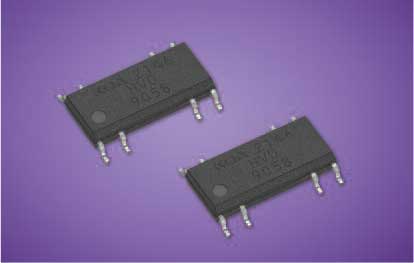

HVDP08 High Voltage Divider- Precision Type

Features

• High precision high voltage divider

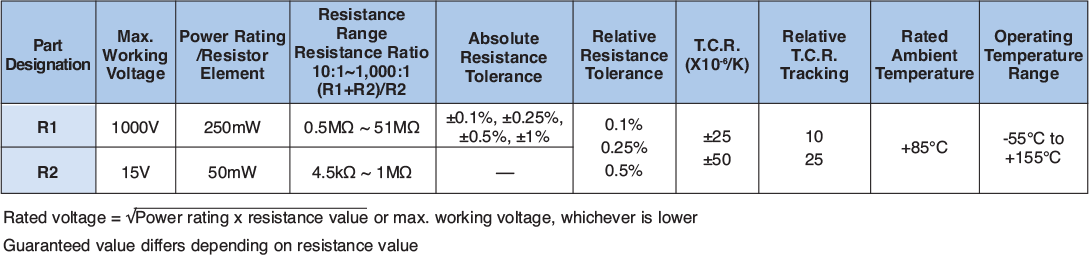

• Maximum resistance value 51MΩ, maximum working voltage 1000V, maximum resistance ratio 1000:1
• Relative precision of pair resistors are guaranteed
• Higher integration saves board space and overall assembly costs
• Excellent reliability with standard molded IC package
• Suitable for reflow soldering
• Products meet EU RoHS requirements
• AEC-Q200 Tested
