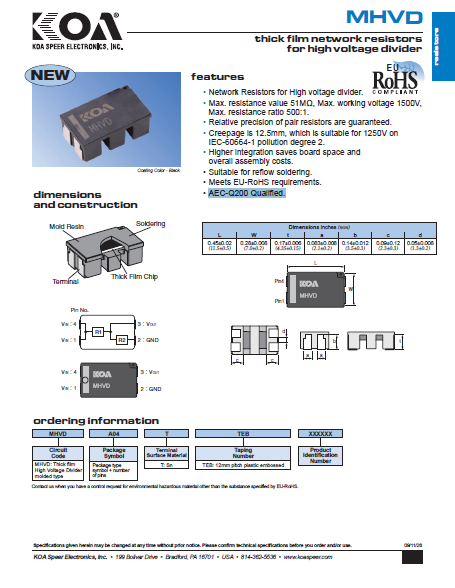

MHVD High Voltage Divider- Thick Film NEW

Features

• Network Resistors for High voltage divider.

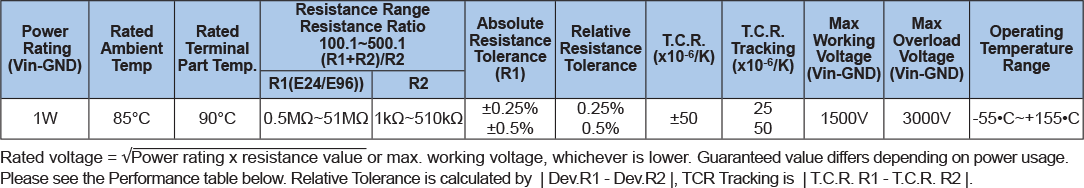

• Max. resistance value 51MΩ, Max. working voltage 1500V, Max. resistance ratio 500:1.
• Relative precision of pair resistors are guaranteed.

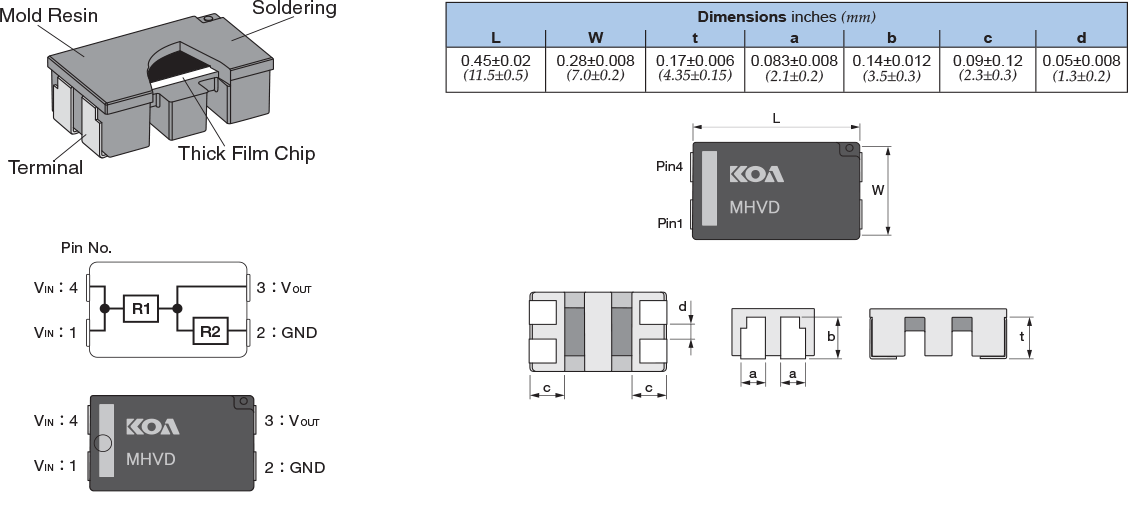

• Creepage is 12.5mm, which is suitable for 1250V on IEC-60664-1 pollution degree 2.
• Higher integration saves board space and overall assembly costs.
• Suitable for reflow soldering.
• Meets EU-RoHS requirements.
• AEC-Q200 Qualified.
