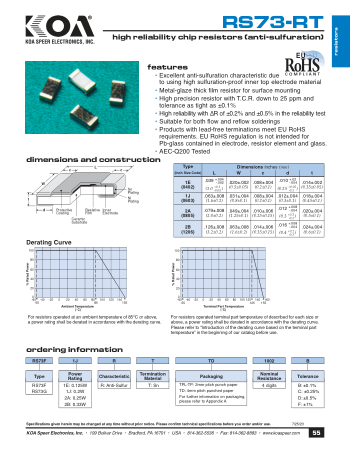

RS73-RT Ultra Precision High Reliability (Anti-Sulfur)

Features

• Excellent anti-sulfuration characteristic due to using high sulfuration-proof inner top electrode material

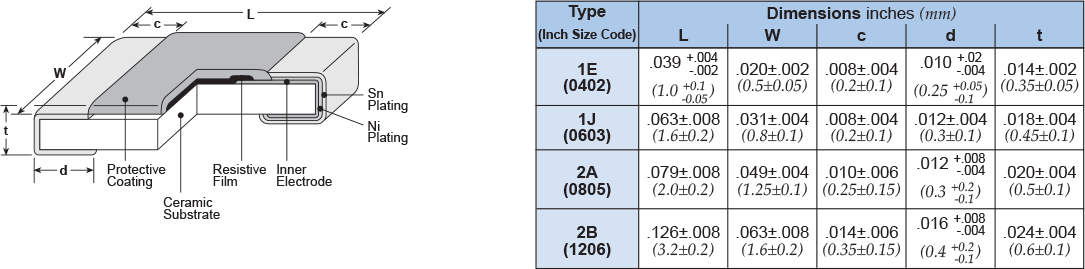

• Metal-glaze thick film resistor for surface mounting

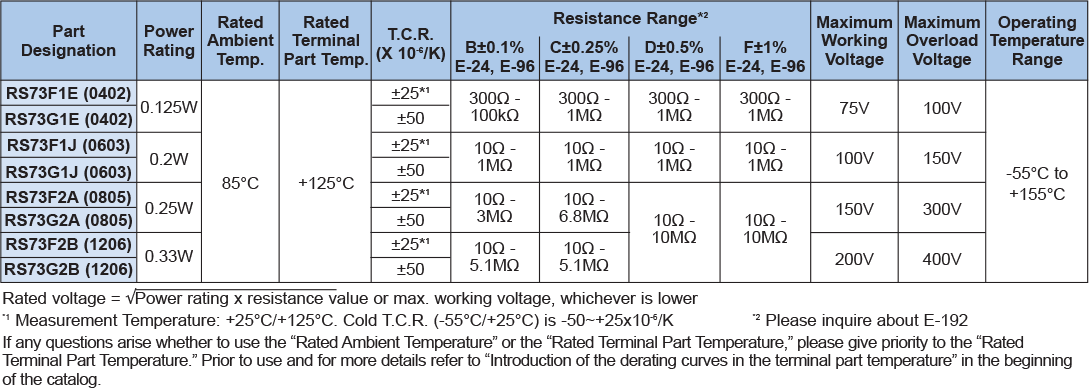

• High precision resistor with T.C.R. ±25x10^-6/K~ and tolerance ±0.1%

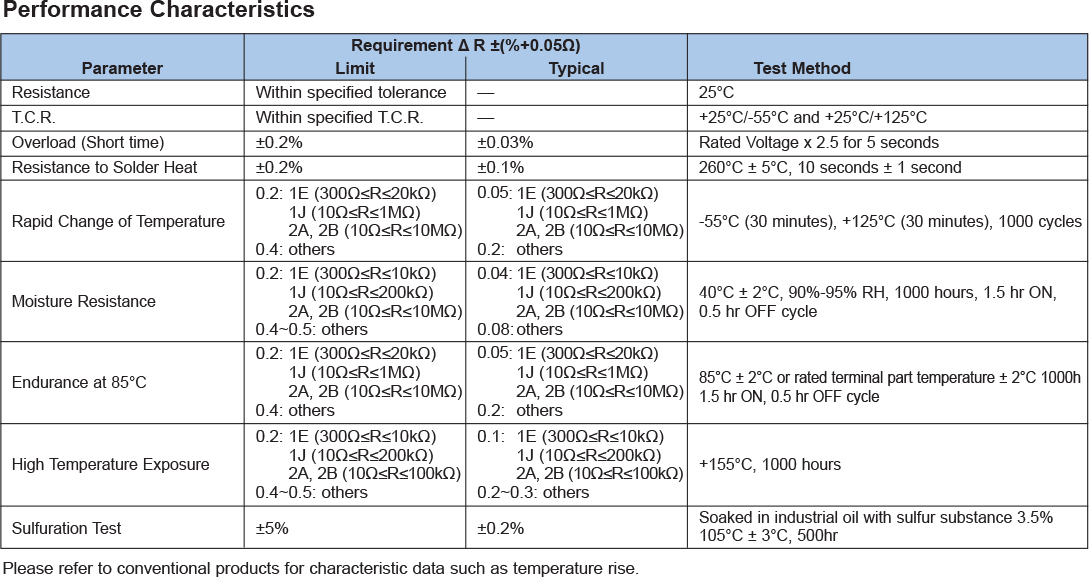

• High reliability with ΔR of ±0.2% and ±0.4% in the reliability test
• Suitable for both flow and reflow solderings
• Products with lead-free terminations meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in electrode, resistor element and glass.
• AEC-Q200 Tested
