WK73R-RT (Anti-Sulfur)
- Home
- Products
- Surface Mount Resistors
- Wide Terminal
- WK73R-RT
Features

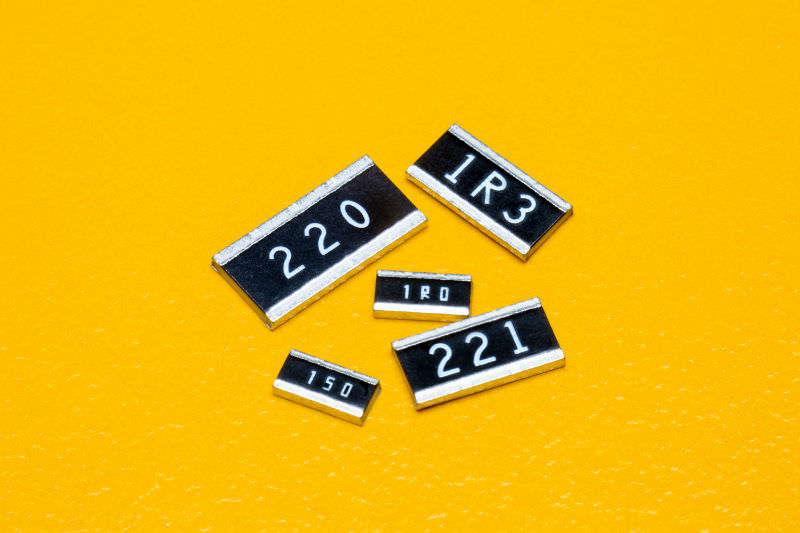

- Anti-sulfuration type, wide-side termination (reverse-geometry) type flat chip resistor
- Excellent anti-sulfuration characteristic due to using high sulfuration-proof inner top electrode material
- Suitable for both flow and reflow solderings
- Product meets EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in electrode, resistor element and glass.
- AEC-Q200 Tested

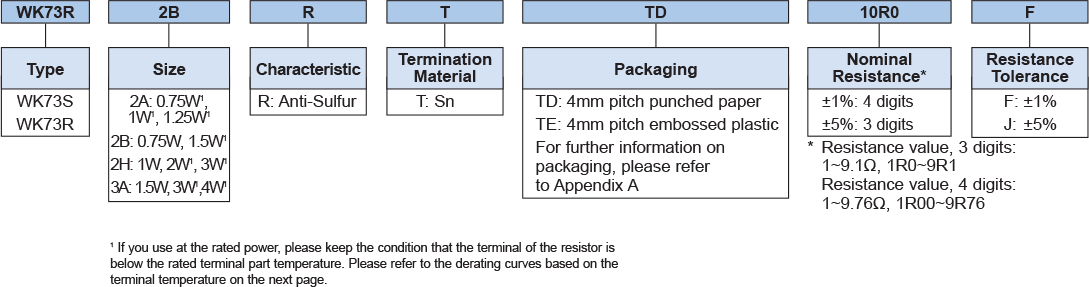

Ordering Information CHECK INVENTORY ORDER SAMPLES
Last Updated: 10/20/2023

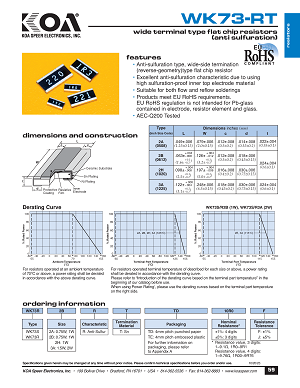

Downloads
