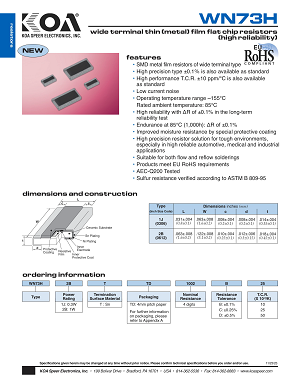

WN73H Wide Terminal Thin (Metal) Film
(High Reliability) NEW

Features

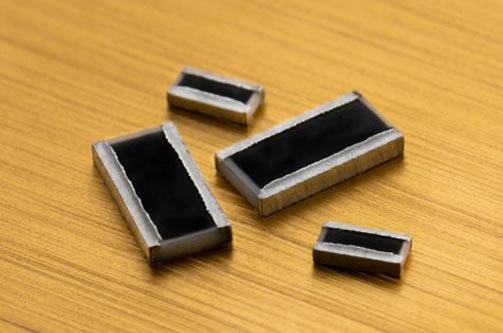

• SMD metal film resistors of wide terminal type
• High precision type ±0.1 % is also available as standard
• High performance T.C.R. ±10 ppm/°C is also available as standard
• Low current noise
• Operating temperature range ~155°C Rated ambient temperature: 85°C
• High reliability with LlR of ±0.1 % in the long-term reliability test
• Endurance at 85°C (1,000h): LlR of ±0.1 %
• Improved moisture resistance by special protective coating
• High precision resistor solution for tough environments, especially in high reliable automotive, medical and industrial applications
• Suitable for both flow and reflow solderings
• Products meet EU RoHS requirements
• AEC-Q200 Tested
• Sulfur resistance verified according to AST M B 809-95
