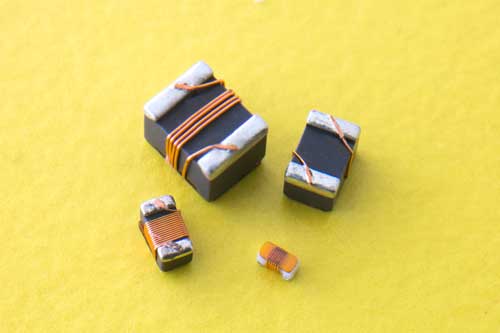

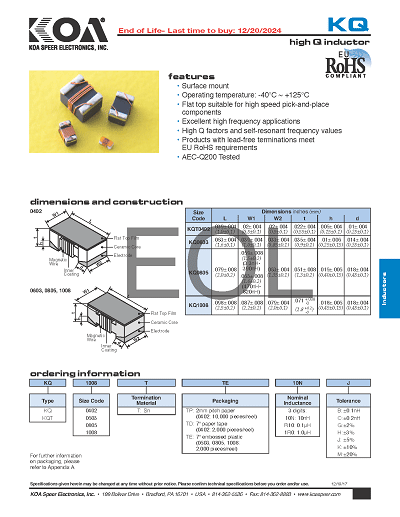

KQ/KQT High Q Inductors
EOL - End of Life
Highlighted parts: Last time to buy: 9/20/2024
All other parts: Last time to buy: 12/20/2024
![KQ-7](./images/KQ-7.jpg)
Features
- Surface mount
- Operating temperature: -40°C ~ +125°C
- Flat top suitable for high speed pick-and-place components
- Excellent high frequency applications
- High Q factors and self-resonant frequency values
- Products with lead-free terminations meet EU RoHS requirements
- AEC-Q200 Tested

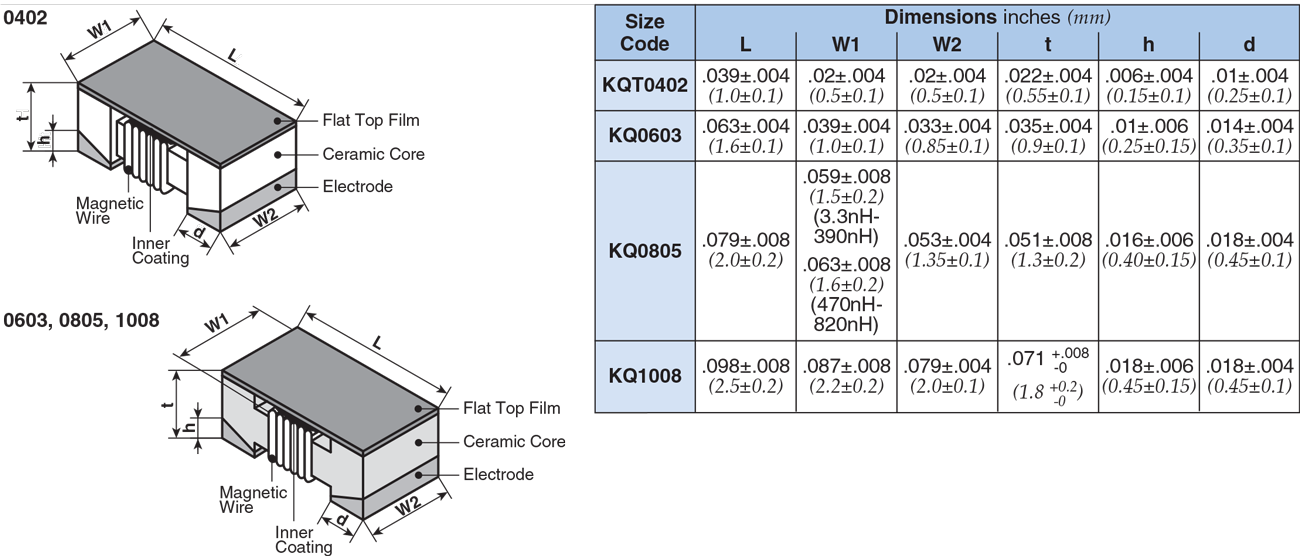

![Dimensions and Construction](./images/charts/KQ_1.png)

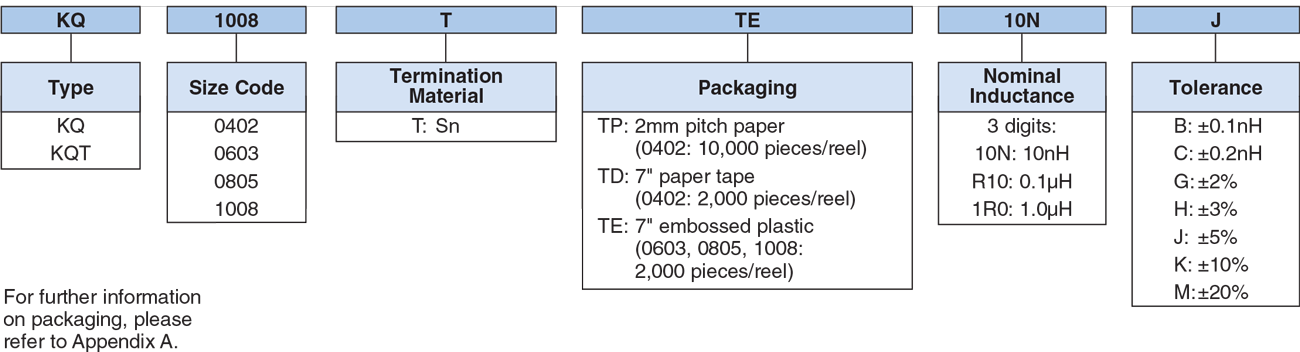

Ordering Information CHECK INVENTORY ORDER SAMPLES
![Ordering Information](./images/charts/KQ_2.png)

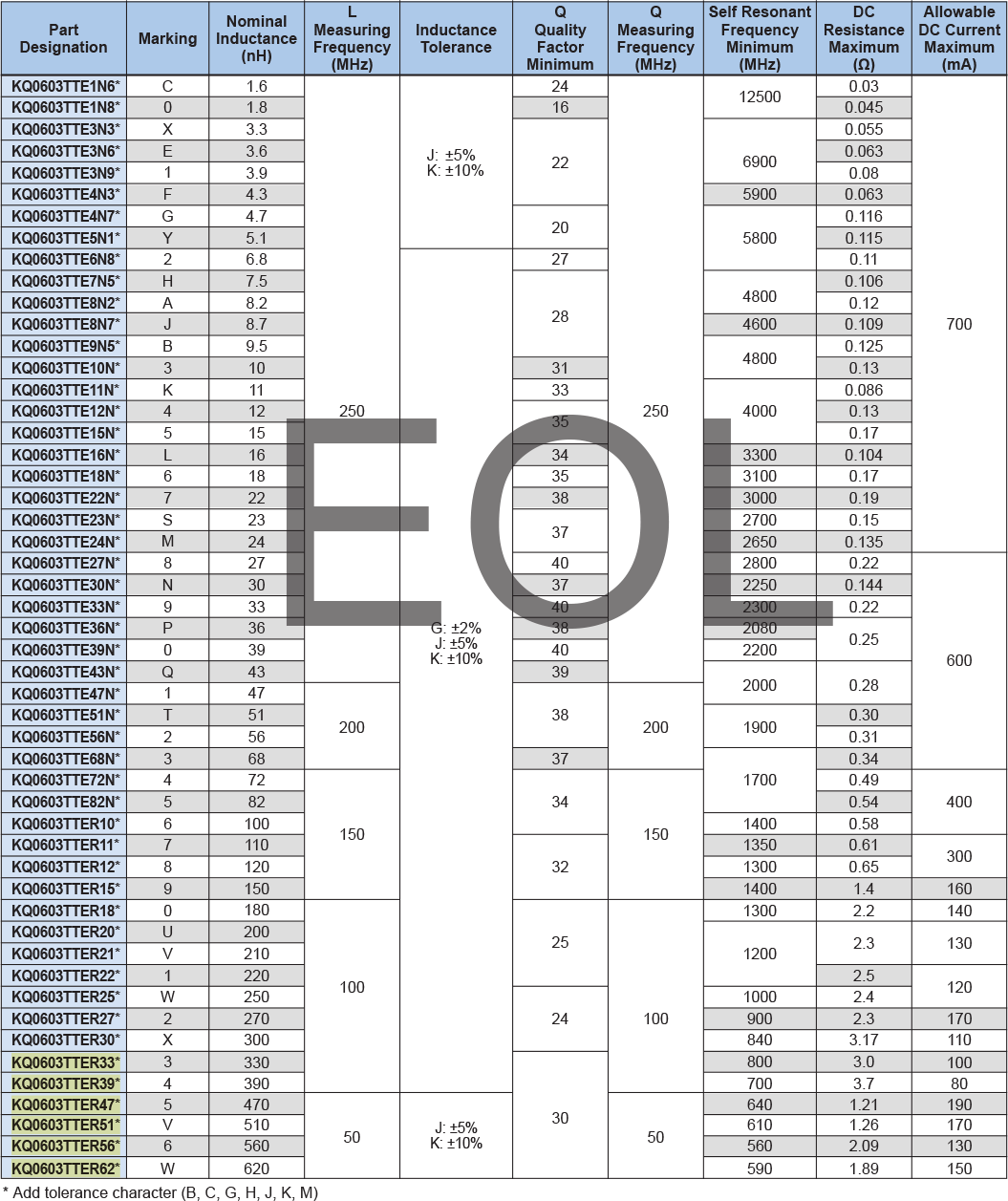

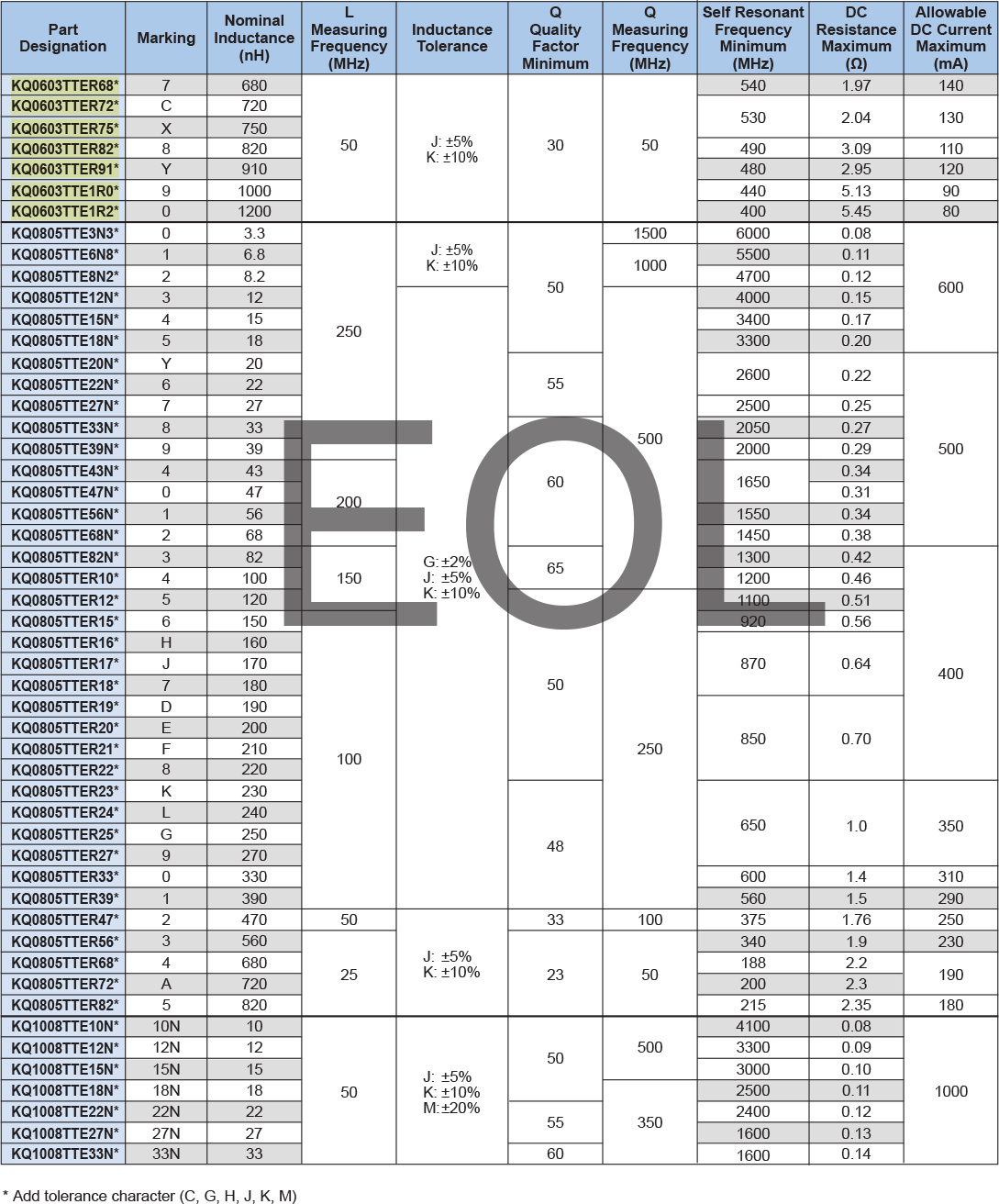

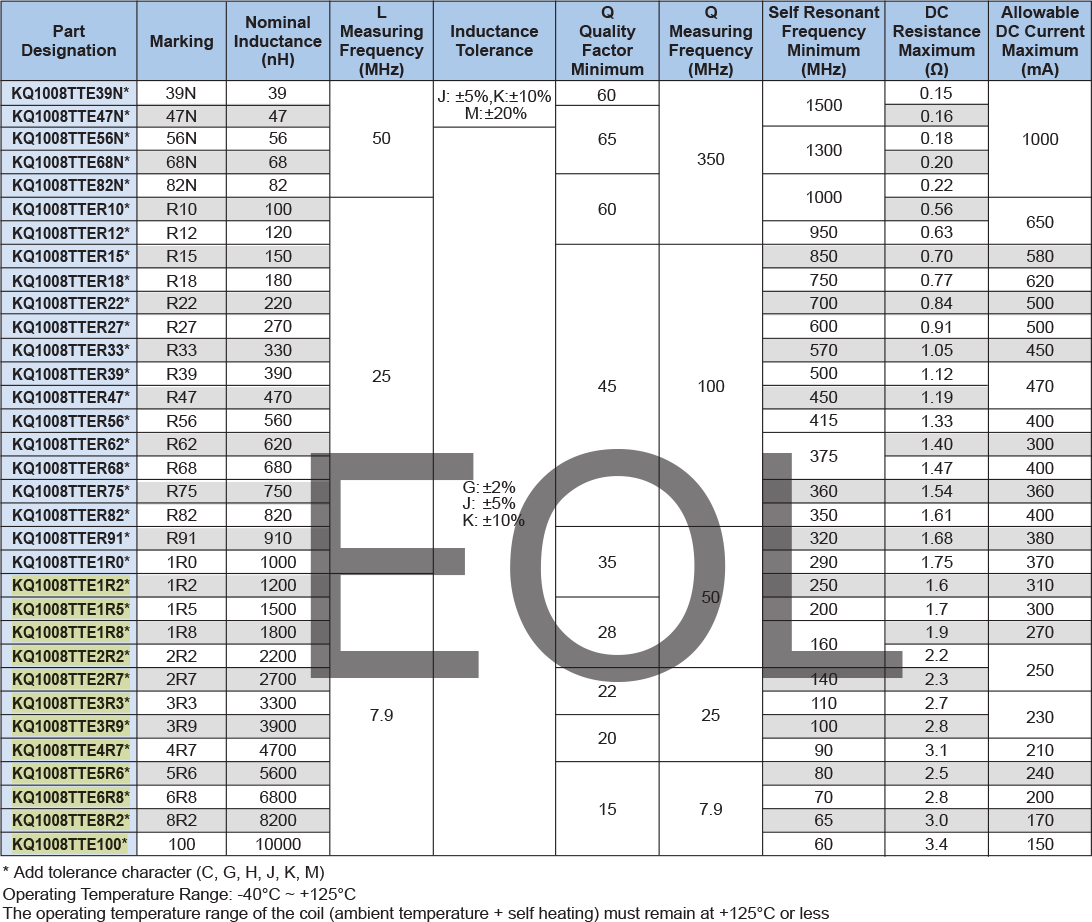

![Applications and Ratings](./images/charts/KQ_3.png)
![Applications and Ratings](./images/charts/KQ_4.png)
![Applications and Ratings](./images/charts/KQ_5.png)
![Applications and Ratings](./images/charts/KQ_6.png)

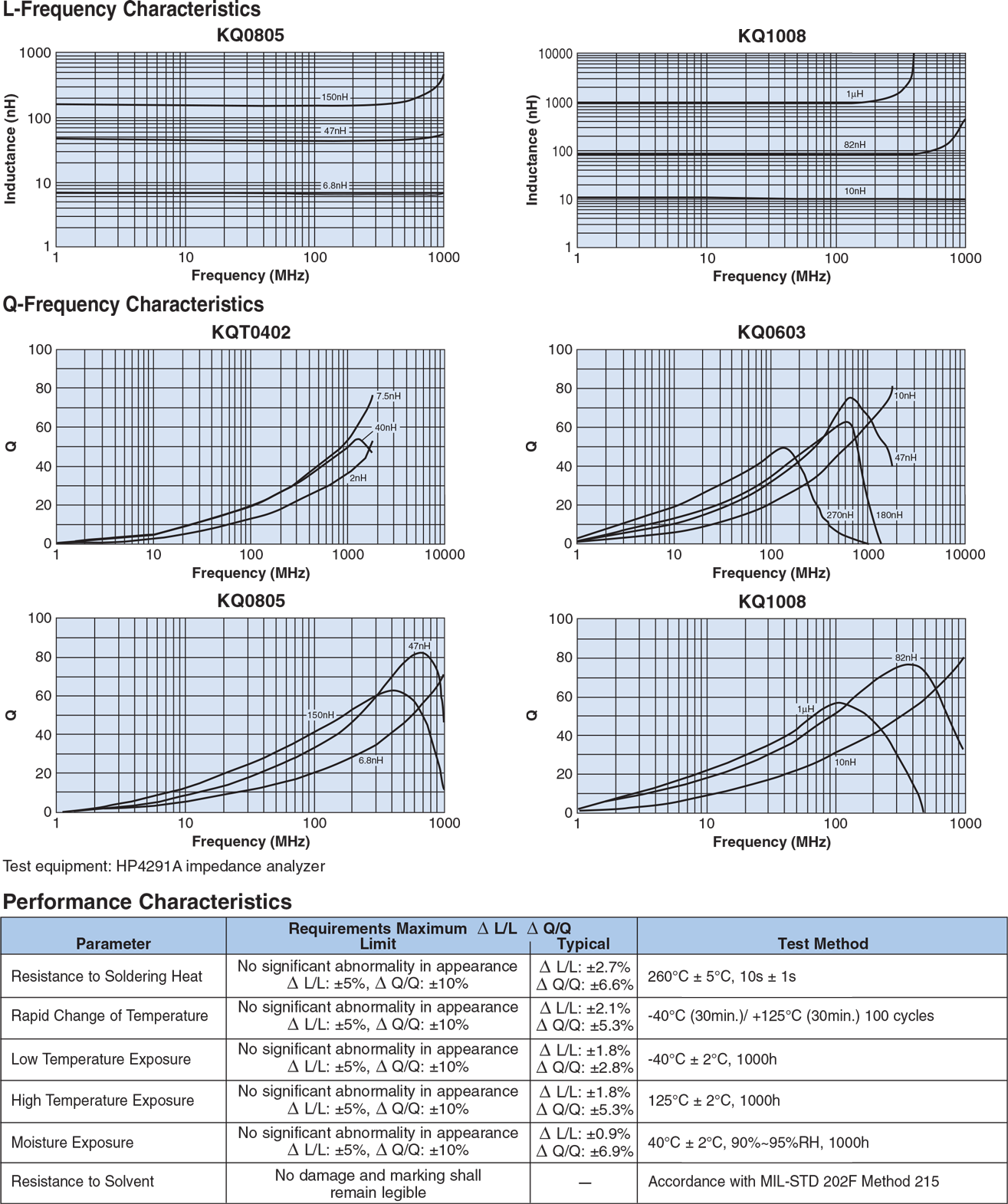

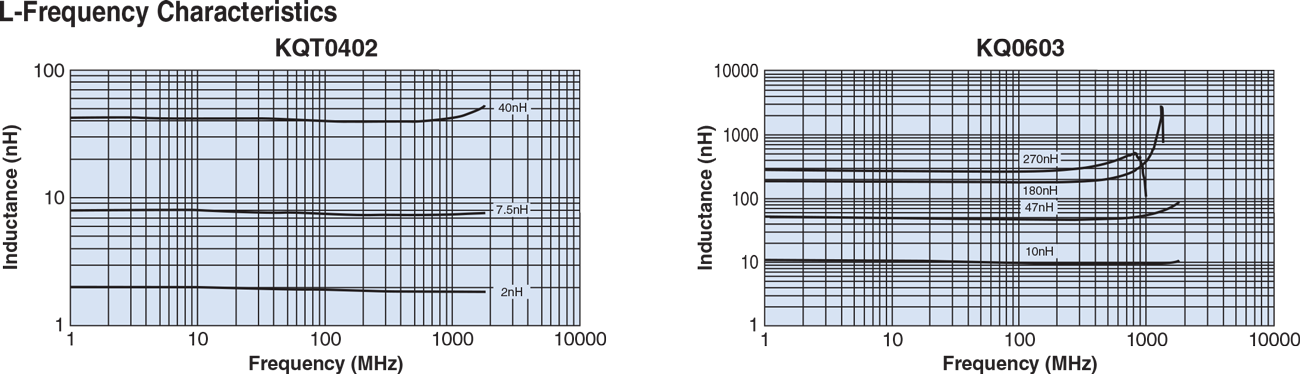

![Environmental Applications](./images/charts/KQ_7.png)
![Environmental Applications](./images/charts/KQ_8.png)
Last Updated: 7/25/2024
