SDT73H, SDT73S General Purpose Chip Series Sensors

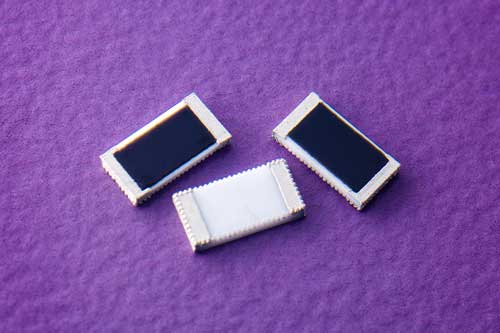

![SDT73H-8](./images/SDT73H-8.jpg)
Features
- SMD platinum thin film thermal sensors
- T.C.R. is in accordance to JIS-DIN standards IEC
- Suitable for temperature control in various industrial equipment
- Suitable for both flow and reflow solderings
- Products meet EU RoHS requirements

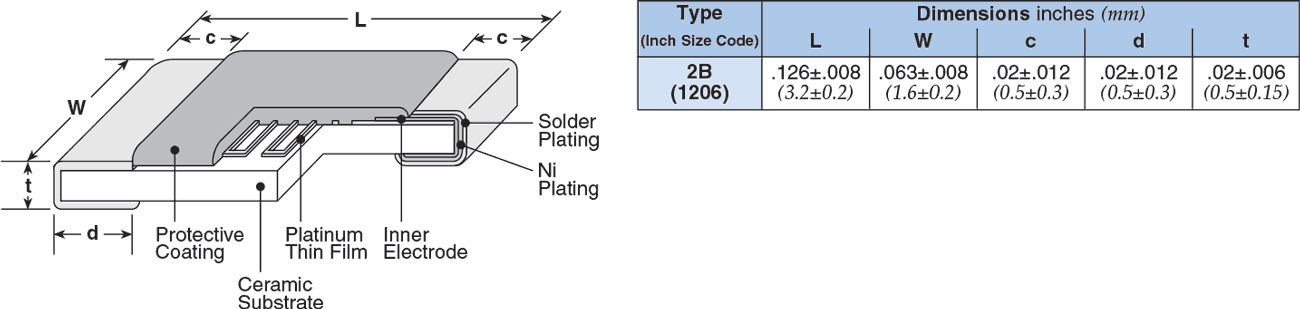

![Dimensions and Construction](./images/charts/SDT73H-SDT73S_1.png)
Ordering Information CHECK INVENTORY ORDER SAMPLES

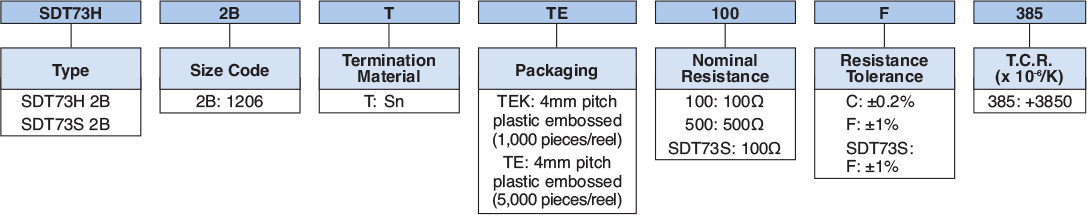

![Ordering Information](./images/charts/SDT73H-SDT73S_2.png)

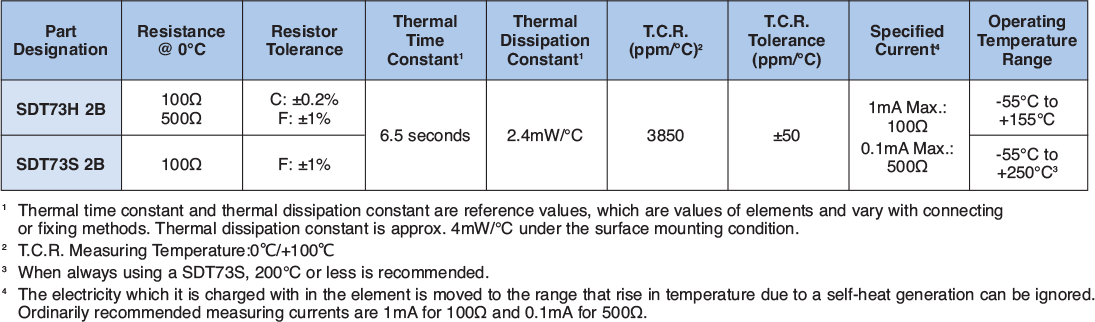

![Applications and Ratings](./images/charts/SDT73H-SDT73S_3.png)

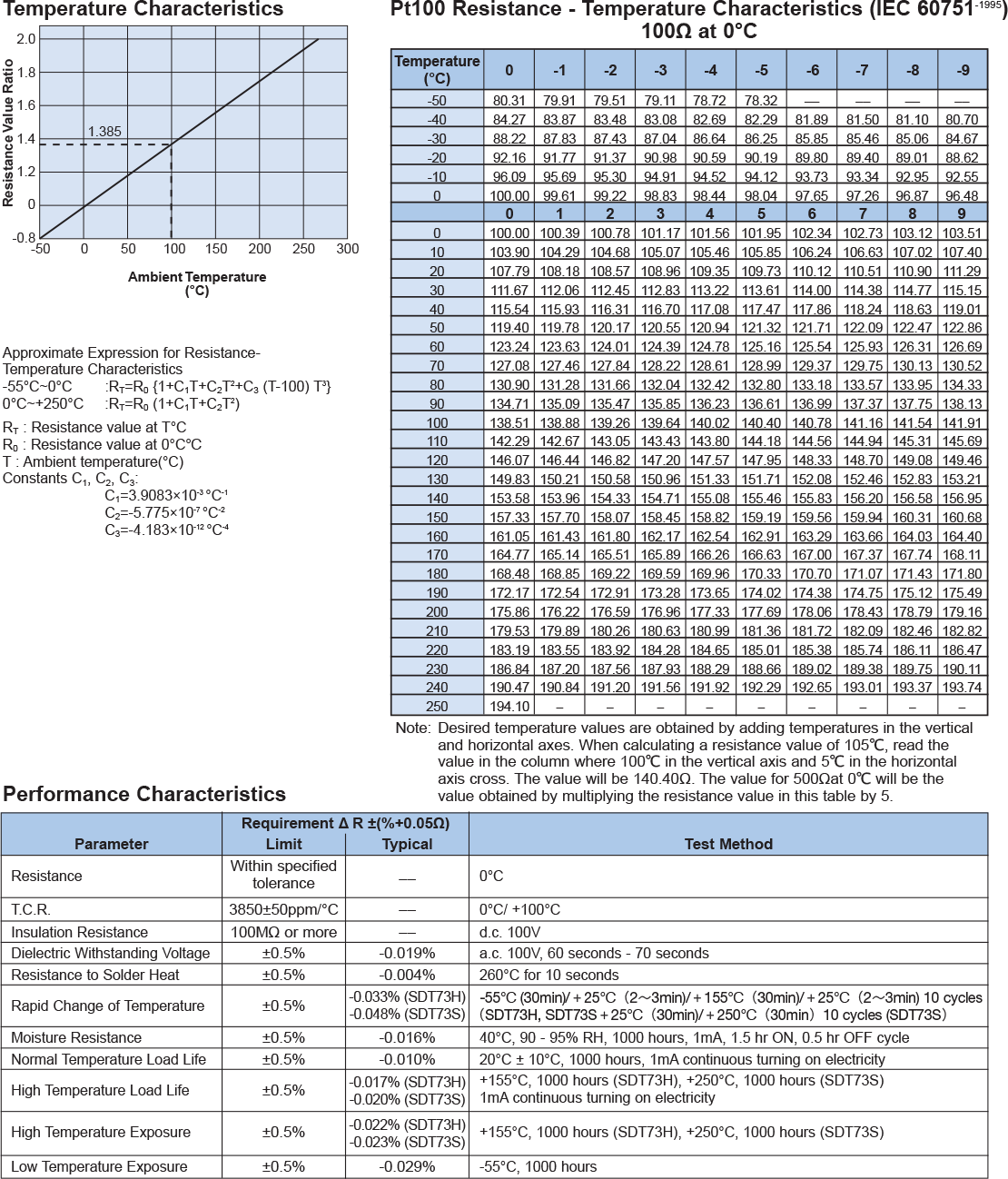

![Environmental Applications](./images/charts/SDT73H-SDT73S_4.png)
Last Updated: 11/03/2023
