SDT73V Automotive Platinum Thin Film Chip Series Sensors

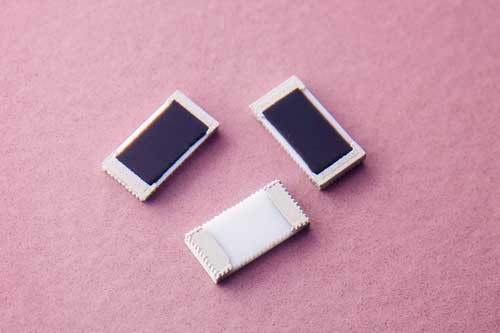

![SDT73V-8](./images/SDT73V-8.jpg)
Features
- SMD platinum thin film thermal sensors
- T.C.R. is in accordance to JIS IEC standards
- Suitable for both flow and reflow solderings
- Products meet EU RoHS requirements
- AEC-Q200 Tested

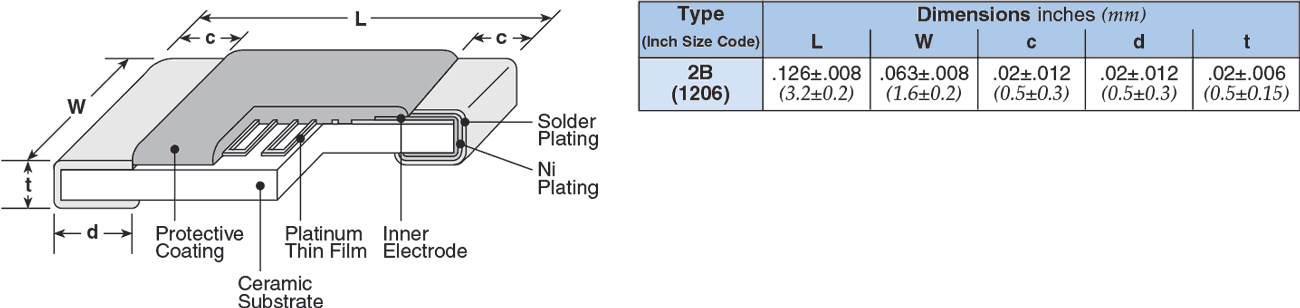

![Dimensions and Construction](./images/charts/SDT73V_1.png)
Ordering Information CHECK INVENTORY ORDER SAMPLES

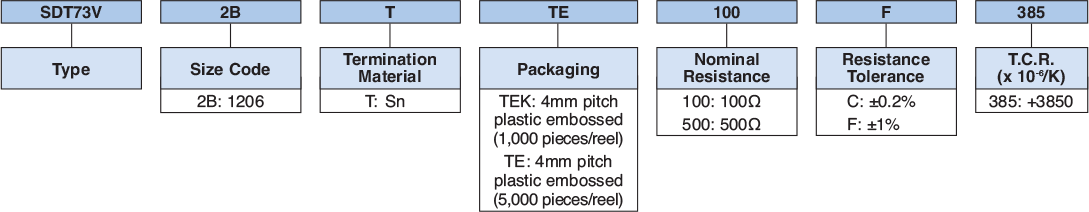

![Ordering Information](./images/charts/SDT73V_2.png)

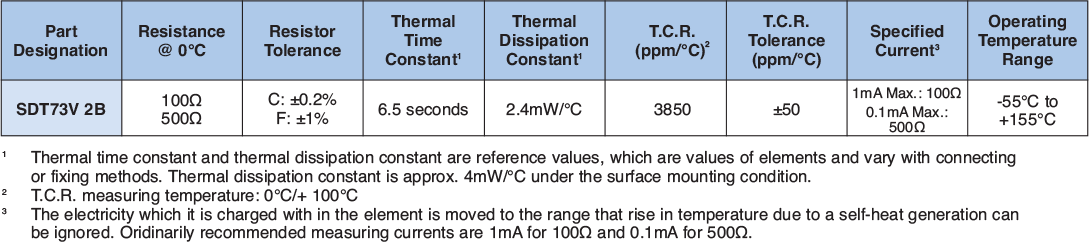

![Applications and Ratings](./images/charts/SDT73V_3.png)

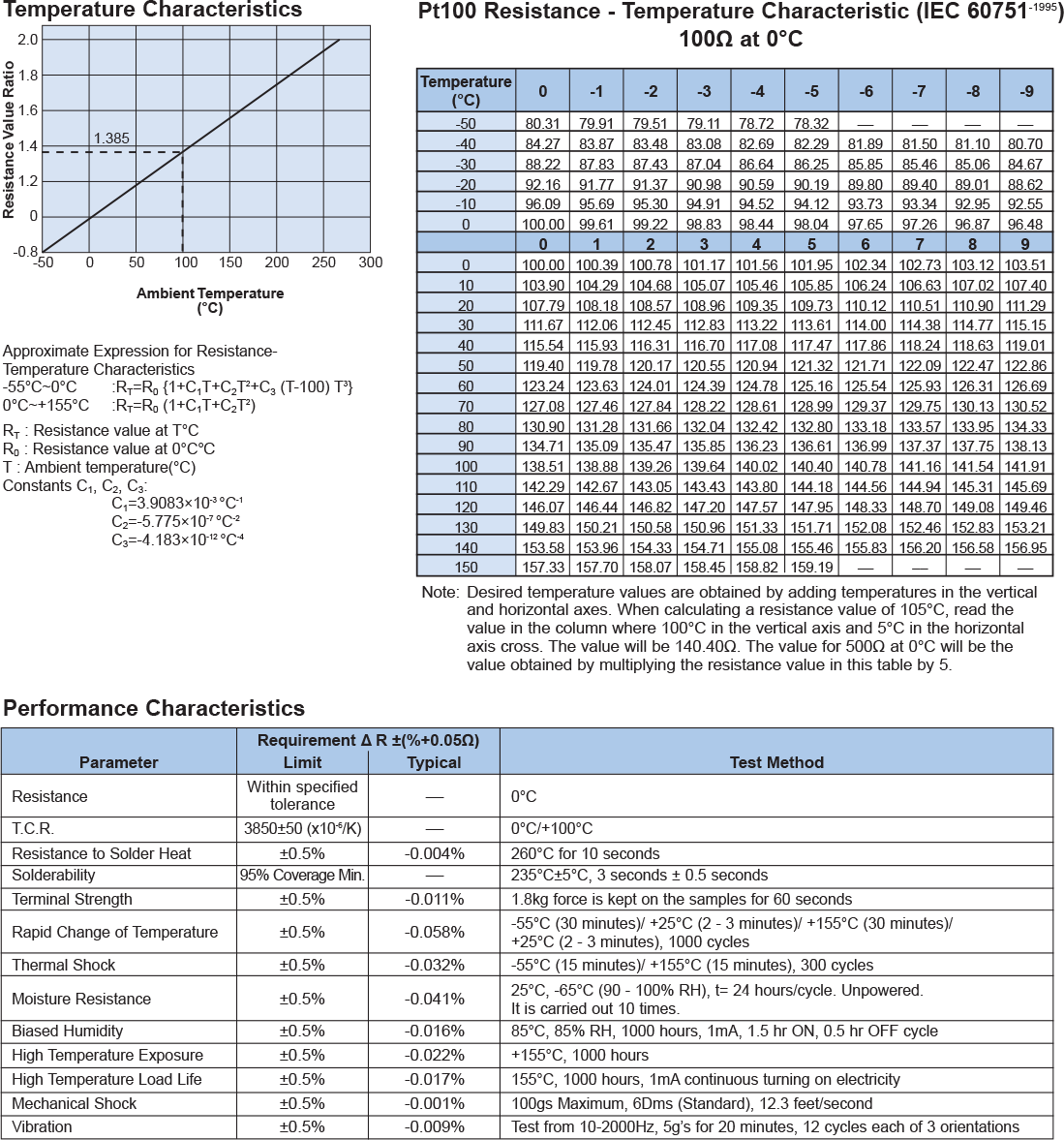

![Environmental Applications](./images/charts/SDT73V_4.png)
Last Updated: 11/07/2023
