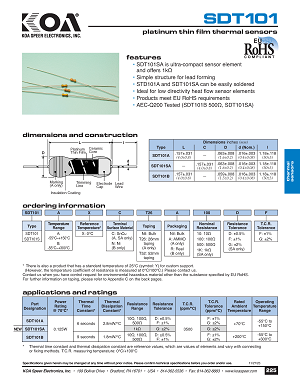

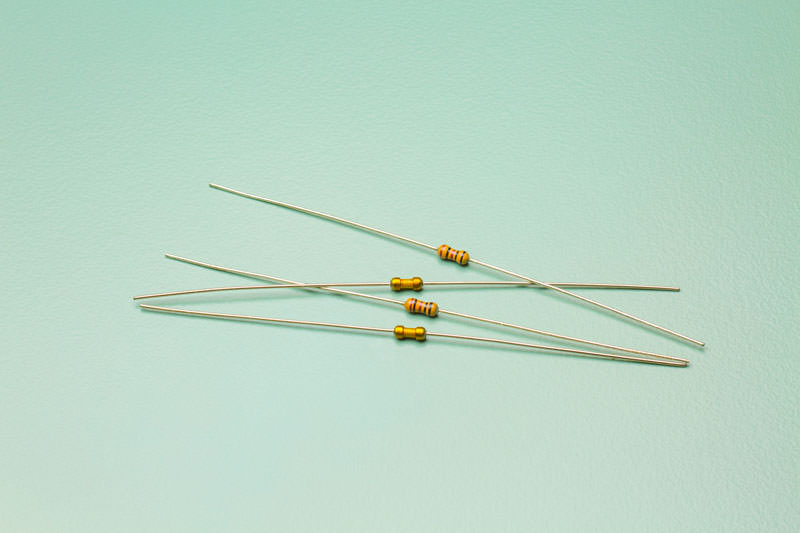

SDT101 Axial Platinum Thin Film Thermal Series Sensors

Features
- SDT101SA is ultra-compact sensor element and offers 1kΩ
- Simple structure for lead forming
- STD101A and SDT101SA can be easily soldered
- Ideal for low directivity heat flow sensor elements
- Stable characteristics even in use for a long time with an excellent environment resistance
- Products with lead-free terminations meet EU RoHS and China RoHS requirements
- AEC-Q200 Tested (SDT101B 500Ω only)




Last Updated: 11/10/2021
