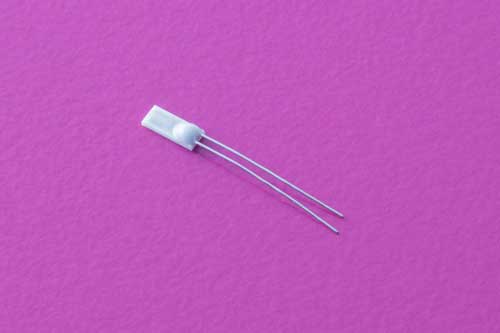

SDT310HCTP Small Type Platinum Thin Film Thermal Sensors

Features

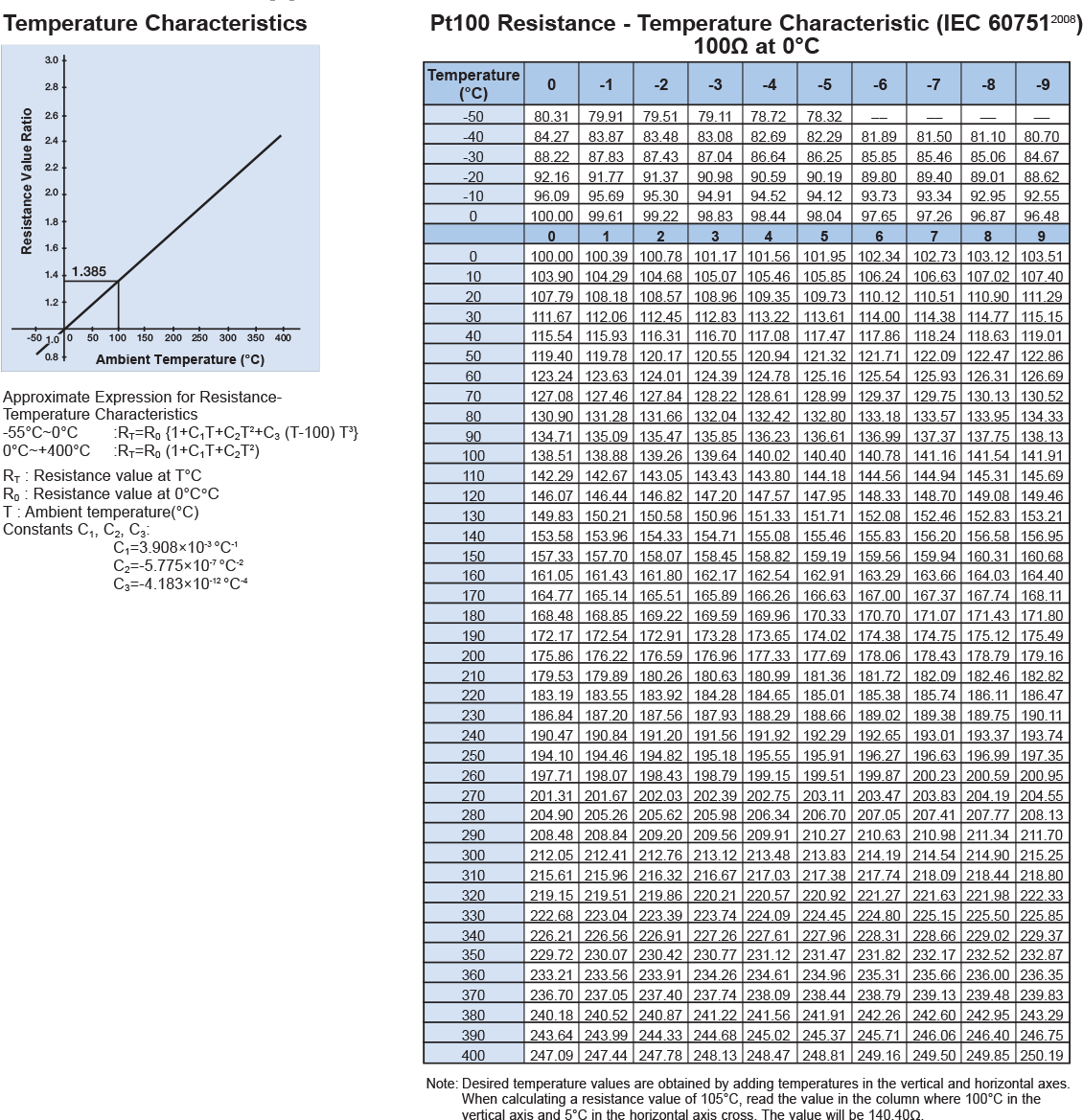

- Characteristics are equivalent with IEC 60751-2008, JISC 1604-2013

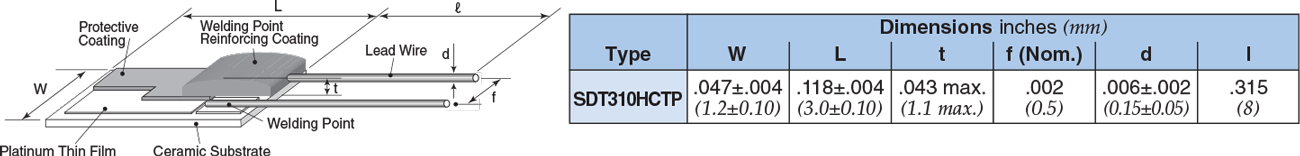

- Small package of 1.2mm x 3mm with 1kΩ resistance
- Products meet RoHS requirements. RoHS regulation is not intended for Pb-glass contained in glass.





Last Updated: 2/11/2019
